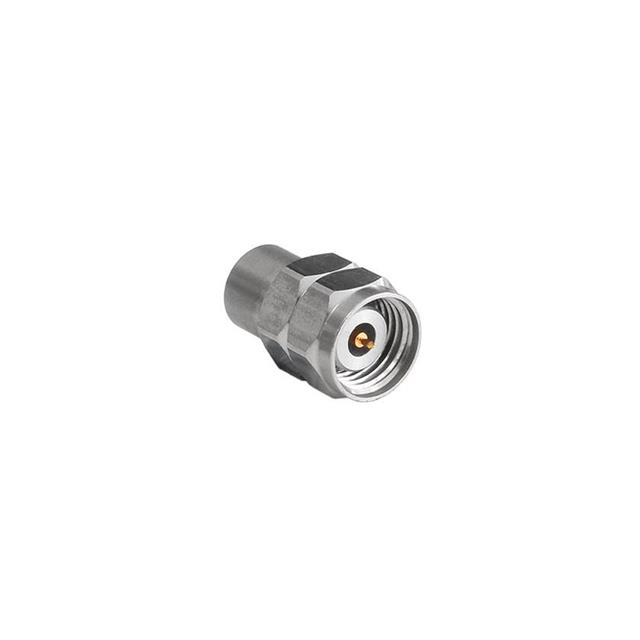

RFTERM240P1W

Active

BULGIN LIMITED

RF TERMINATOR, 2.4MM TERMINATOR PLUG, 40 GHZ, 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

RFTERM240P1W

Active

BULGIN LIMITED

RF TERMINATOR, 2.4MM TERMINATOR PLUG, 40 GHZ, 50 OHM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RFTERM240P1W

Body Material	Stainless Steel
Connector Style	OS-50
Connector Style	2.4 mm
Connector Style	APC-2.4
Connector Type	Male Pin, Plug
Contact Material	Beryllium Copper
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

RFTERM Series

Part	Body Material	Connector Type	Mounting Type	Impedance	Contact Material	Connector Style	Frequency - Max [Max]	Dielectric Material	Connector Style	Connector Style	Connector Style
BULGIN LIMITED RFTERM292J05W	Stainless Steel	Female Socket Jack	Cap Free Hanging	50 Ohms	Beryllium Copper	2.92 mm	40 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFTERM292P05W	Stainless Steel	Male Pin Plug	Cap Free Hanging	50 Ohms	Beryllium Copper	2.92 mm	40 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFTERMSMAP2W	Stainless Steel	Male Pin Plug	Cap Free Hanging	50 Ohms	Beryllium Copper		18 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	SMA
BULGIN LIMITED RFTERM350J1W	Stainless Steel	Female Socket Jack	Cap Free Hanging	50 Ohms	Beryllium Copper	3.5 mm	40 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFTERM292J1W	Stainless Steel	Female Socket Jack	Cap Free Hanging	50 Ohms	Beryllium Copper	2.92 mm	40 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFTERMSMAJ2W	Stainless Steel	Female Socket Jack	Cap Free Hanging	50 Ohms	Beryllium Copper		18 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	SMA
BULGIN LIMITED RFTERM350P2W	Stainless Steel	Male Pin Plug	Cap Free Hanging	50 Ohms	Beryllium Copper	3.5 mm	40 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFTERM350P1W	Stainless Steel	Male Pin Plug	Cap Free Hanging	50 Ohms	Beryllium Copper	3.5 mm	40 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFTERM240P1W	Stainless Steel	Male Pin Plug	Cap Free Hanging	50 Ohms	Beryllium Copper	2.4 mm	40 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)		OS-50	APC-2.4
BULGIN LIMITED RFTERM350J2W	Stainless Steel	Female Socket Jack	Cap Free Hanging	50 Ohms	Beryllium Copper	3.5 mm	40 GHz	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 285.44
Newark	Each	1	$ 526.24

Description

General part information

RFTERM Series

Terminator Coax Connector Plug, Male Pin 2.4mm (APC-2.4, OS-50) 50 Ohms
