KUSBX-SL2-CS1N24-B-TR

Active

Kycon, Inc.

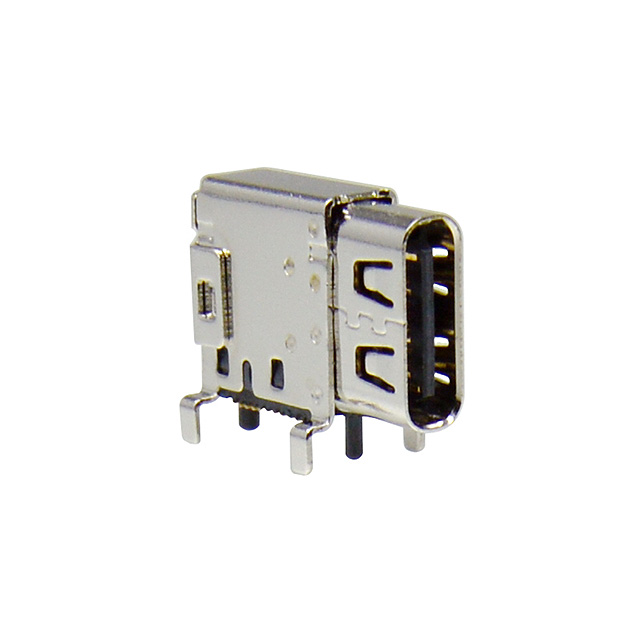

CONN USB TYPE-C 3.2 GEN 2 FLAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KUSBX-SL2-CS1N24-B-TR

Active

Kycon, Inc.

CONN USB TYPE-C 3.2 GEN 2 FLAG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KUSBX-SL2-CS1N24-B-TR

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating (Amps)	0.25 A, 1.25 A, 5 A
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Vertical, Flag
Mounting Type	Through Hole, Right Angle
Number of Contacts	24
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder
Voltage - Rated	30 V

KUSBXHT Series

USB Connectors Upright-USB A Orang G-30u Plt-Cont HiRet

Part	Termination	Connector Type	Shielding	Number of Contacts [custom]	Mounting Feature	Material Flammability Rating	Contact Finish	Voltage - Rated	Shell/Shielding Material	Number of Ports	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Gender	Current Rating (Amps)	Mating Cycles	Specifications	Number of Contacts	Features
Kycon, Inc. KUSBX-SMT2AP1S-B	Solder	USB-A (USB TYPE-A)	Shielded	4	Horizontal	UL94 V-0	Gold	30 VAC	Copper Alloy	1	Black	85 °C	-55 °C	Surface Mount Right Angle Through Hole	Plug
Kycon, Inc. KUSBXHT-SLAS1N-O30-HRF	Solder	USB-A (USB TYPE-A)	Unshielded	4	Flag Vertical	UL94 V-0	Gold	30 VAC	Stainless Steel	1	Orange	85 °C	-55 °C	Through Hole Right Angle	Receptacle	1.5 A	1500
Kycon, Inc. KUSBX-AS1N-W	Solder	USB-A (USB TYPE-A)	Shielded	4	Horizontal	UL94 V-0	Gold	30 VAC	Copper Alloy	1	White	85 °C	-40 °C	Through Hole Right Angle	Receptacle	1.5 A	1500
Kycon, Inc. KUSBX-SMTTH-CS1-BTR	Solder	USB-C (USB TYPE-C)	Shielded		Horizontal	UL94 V-0	Gold		Stainless Steel	1	Black	85 °C	-30 ░C	Through Hole Right Angle	Receptacle	0.25 A 1.25 A 5 A 6.25 A	10000	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	24
Kycon, Inc. KUSBX-AS2N-B30	Solder	Stacked USB-A (USB TYPE-A)	Shielded		Horizontal	UL94 V-0	Gold	30 VAC	Brass	2	Black	85 °C	-40 °C	Through Hole Right Angle	Receptacle		1500		8
Kycon, Inc. KUSBX-AS1N9-1-BL30	Solder	USB-A (USB TYPE-A)	Shielded		Horizontal	UL94 V-0	Gold		Brass	1	Blue	85 °C	-55 °C	Through Hole Right Angle	Receptacle	0.25 A 1.8 A	1500		9
Kycon, Inc. KUSBVXHT-BS1N-O30-HRF	Solder	USB-B	Unshielded	4	Vertical	UL94 V-0	Gold	30 V	Stainless Steel	1	Orange	85 °C	-55 °C	Through Hole	Receptacle	1.5 A	1500
Kycon, Inc. KUSBX-SMT-BS1N-B30	Solder	USB-B	Shielded	4	Horizontal	UL94 V-0	Gold	30 VAC	Brass	1	Black	85 °C	-40 °C	Surface Mount Right Angle	Receptacle		1500			Board Guide Solder Retention
Kycon, Inc. KUSBX-SMT2AP5S-B	Solder	USB-A (USB TYPE-A)	Shielded	4	Horizontal	UL94 V-0	Gold	30 VAC	Copper Alloy	1	Black	85 °C	-55 °C	Surface Mount Right Angle Through Hole	Plug
Kycon, Inc. KUSBX-SL2-CS1N24-B-TR	Solder	USB-C (USB TYPE-C)	Shielded		Flag Vertical	UL94 V-0	Gold	30 V	Stainless Steel	1	Black	85 °C	-30 ░C	Through Hole Right Angle	Receptacle	0.25 A 1.25 A 5 A	10000	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	24
