SC39-12SURKWA

Active

Kingbright

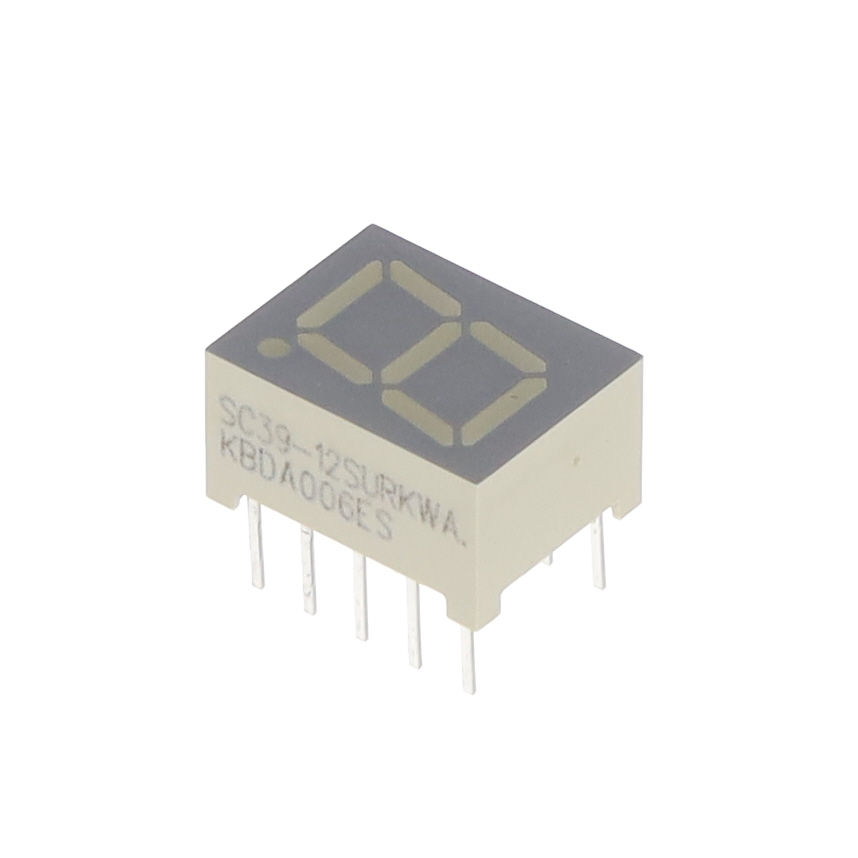

DISPLAY 7SEG 0.39" SGL RED 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SC39-12SURKWA

Active

Kingbright

DISPLAY 7SEG 0.39" SGL RED 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC39-12SURKWA

Color	Red
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	0.39 in
Digit/Alpha Size	10 mm
Display Type	7-Segment
Millicandela Rating	46 mcd
Number of Characters [custom]	1
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	13 mm
Size / Dimension [x]	0.512 in
Size / Dimension [y]	0.394 in
Size / Dimension [y]	10 mm
Size / Dimension [z]	0.276 in
Size / Dimension [z]	7 mm
Voltage - Forward (Vf) (Typ)	1.95 V
Wavelength - Peak	645 nm

SC39-12 Series

Part	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Color	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Display Type	Current - Test	Number of Characters [custom]	Power Dissipation (Max) [Max]
Kingbright SC39-12YWA	Common Cathode	0.39 in	10 mm	13 mm	0.512 in	0.276 in	0.394 in	7 mm	10 mm	Yellow	590 nm	2.1 V	3 mcd	7-Segment	20 mA	1	75 mw
Kingbright SC39-12EWA	Common Cathode	0.39 in	10 mm	13 mm	0.512 in	0.276 in	0.394 in	7 mm	10 mm	Red	627 nm	2 V	4.1 mcd	7-Segment	20 mA	1	75 mw
Kingbright SC39-12SRWA	Common Cathode	0.39 in	10 mm	13 mm	0.512 in	0.276 in	0.394 in	7 mm	10 mm	Red	660 nm	1.85 V	17 mcd	7-Segment	20 mA	1	75 mw
Kingbright SC39-12SYKWA	Common Cathode	0.39 in	10 mm	13 mm	0.512 in	0.276 in	0.394 in	7 mm	10 mm	Yellow	590 nm	2 V	86 mcd	7-Segment	20 mA	1	75 mw
Kingbright SC39-12SURKWA	Common Cathode	0.39 in	10 mm	13 mm	0.512 in	0.276 in	0.394 in	7 mm	10 mm	Red	645 nm	1.95 V	46 mcd	7-Segment	20 mA	1	75 mw

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.22
		39	$ 1.48
		117	$ 1.14
		507	$ 1.03
		1014	$ 0.89
		2028	$ 0.84
		5031	$ 0.82
		10023	$ 0.81

Description

General part information

SC39-12 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.95V 20mA 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) 10-DIP (0.300", 7.62mm)

Documents

Technical documentation and resources
