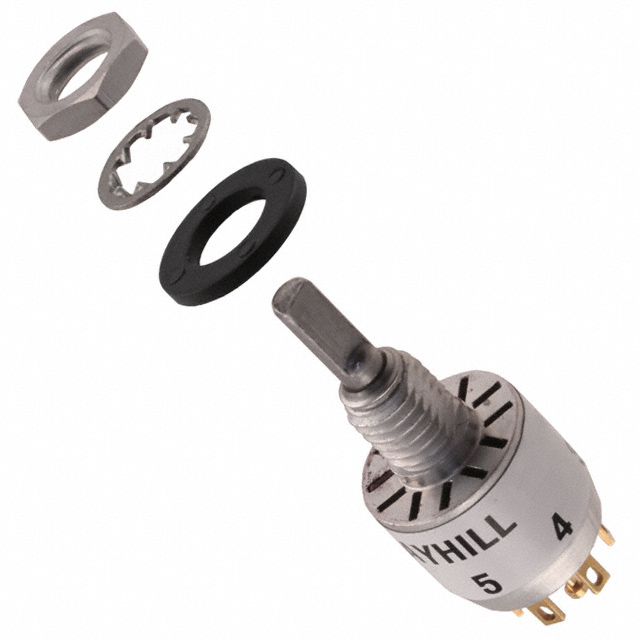

50D60-01-1-AJN

Active

Grayhill Inc.

ROTARY SW, 1P, 6 POS, 0.15A/115V, 2A/28V ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Grayhill Inc.

ROTARY SW, 1P, 6 POS, 0.15A/115V, 2A/28V ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	50D60-01-1-AJN

Actuator Length [x]	9.53 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Circuit per Deck	SP6T
Contact Finish	Gold
Contact Timing	Non-Shorting
Current Rating (Amps)	200 mA, 150 mA
Depth Behind Panel [z]	18.77 mm
Index Stops	Adjustable
Number of Decks [custom]	1
Number of Poles per Deck	1
Number of Positions [Max]	6
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	6.45 mm
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

Part	Circuit per Deck	Actuator Length [x]	Depth Behind Panel [z]	Panel Cutout Dimensions [diameter]	Contact Finish	Voltage Rating - DC	Number of Decks [custom]	Contact Timing	Voltage Rating - AC	Index Stops	Number of Poles per Deck	Actuator Type [diameter]	Actuator Type	Number of Positions [Max]	Number of Positions [Min]	Termination Style	Current Rating (Amps)
Grayhill Inc. 50D60-01-1-AJN	SP6T	9.53 mm	18.77 mm	6.45 mm	Gold	28 V	1	Non-Shorting	115 V	Adjustable	1	3.17 mm	Flatted	6	2	Solder Lug	150 mA 200 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 2 ~ 6 Position SP6T 150mA (AC), 200mA (DC) 115 VAC Panel Mount
