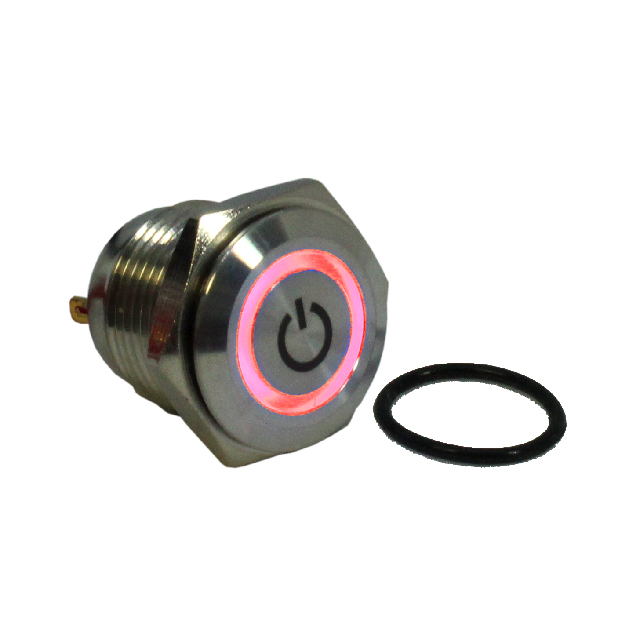

BH16NGSBR

Active

CIT Relay and Switch

SWITCH PB SPST 1A 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB SPST 1A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	BH16NGSBR

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A, 1 A
Electrical Life	50000 Cycles
Features	Stainless Steel
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2.1 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V
Voltage Rating - DC	36 VDC

Part	Voltage Rating - DC	Illumination Type, Color	Actuator Marking	Ingress Protection	Features	Current Rating (Amps)	Mounting Type	Color - Actuator/Cap	Actuator Type	Termination Style	Voltage Rating - AC	Switch Function	Electrical Life	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Circuit	Illumination Voltage (Nominal)
CIT Relay and Switch BH16NGSBG	36 VDC	Green LED	No Marking	IP67 - Dust Tight Waterproof	Stainless Steel	1 A 2 A	Panel Mount Front	Silver	Button Flush Round	Solder Lug	125 V	Off-Mom	50000 Cycles	16 mm	55 °C	-25 °C	Anti-Vandal Illuminated	SPST	3.3 VDC
CIT Relay and Switch BH16NGSBR	36 VDC	LED Red	No Marking	IP67 - Dust Tight Waterproof	Stainless Steel	1 A 2 A	Panel Mount Front	Silver	Button Flush Round	Solder Lug	125 V	Off-Mom	50000 Cycles	16 mm	55 °C	-25 °C	Anti-Vandal Illuminated	SPST	2.1 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Anti-Vandal, Illuminated Panel Mount, Front
