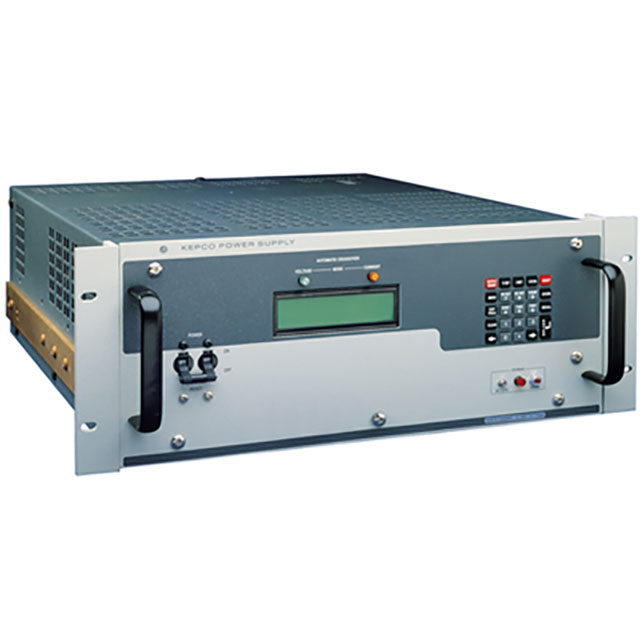

ATE 36-30DMG

Active

Kepco and Kepco Power

POWER SUPPLY RACK MNT 1000W LCD

Search across all available documentation for this part.

Active

Kepco and Kepco Power

POWER SUPPLY RACK MNT 1000W LCD

Technical Specifications

Parameters and characteristics for this part

Specification	ATE 36-30DMG

Current - Output [Max]	30 A
Current - Output [Min]	0 A
Display Type	LCD
Features	Programmable, GPIB Interface
Number of Characters	3.5
Number of Characters	2
Power (Watts)	1 kW
Ripple	30 mV, 10 mV
Size / Dimension [x]	504.8 mm
Size / Dimension [x]	19.874 in
Size / Dimension [y]	482.6 mm
Size / Dimension [y]	19 in
Size / Dimension [z]	6.969 "
Size / Dimension [z]	177 mm
Type	Rack Mount (AC to DC)
Voltage - Output [Max]	36 V
Voltage - Output [Min]	0 VDC
Voltage - Supply [Max]	250 VAC
Voltage - Supply [Min]	95 VAC

Part	Voltage - Output [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Power (Watts)	Current - Output [Max]	Type	Features	Display Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Characters	Number of Characters	Ripple	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
Kepco and Kepco Power ATE 36-1.5DM	36 V	95 VAC	250 VAC	50 W	1.5 A	Rack Mount (AC to DC)	Programmable	LCD	132.6 mm	4.157 in	435 mm	105.6 mm	17.126 in	5.22 "	3.5	2	10 mV 30 mV
Kepco and Kepco Power ATE 36-3DM	36 V	95 VAC	250 VAC	100 W	3 A	Rack Mount (AC to DC)	Programmable	LCD	132.6 mm	4.157 in	435 mm	105.6 mm	17.126 in	5.22 "	3.5	2	10 mV 30 mV
Kepco and Kepco Power ATE 36-30DMG	36 V	95 VAC	250 VAC	1 kW	30 A	Rack Mount (AC to DC)	GPIB Interface Programmable	LCD		177 mm			504.8 mm	482.6 mm	3.5	2	10 mV 30 mV	6.969 "	19 in	19.874 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 7929.25

General part information

0 ~ 36VDC Output Rack Mount (AC to DC) Power Supply LCD 0 ~ 30A Output 1000W Features GPIB Interface, Programmable
