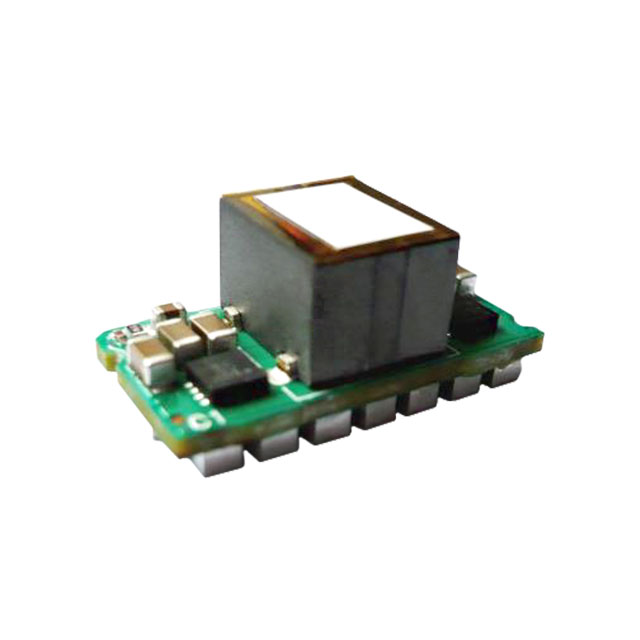

D12S1R845D
NRNDDelta Electronics
DC DC CONVERTER 0.6-3.3V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D12S1R845D
NRNDDelta Electronics
DC DC CONVERTER 0.6-3.3V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D12S1R845D |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 45 A |
| Efficiency | 95.5 % |
| Features | OVP, UVLO, SCP, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SMD Module |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [x] | 1 in |
| Size / Dimension [y] | 0.5 in |
| Size / Dimension [y] | 12.7 mm |
| Size / Dimension [z] | 0.48 in |
| Size / Dimension [z] | 12.2 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 7 V |
| Voltage - Output 1 [Max] | 3.3 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 22.49 | |
| Digi-Reel® | 1 | $ 22.49 | ||
| Tape & Reel (TR) | 180 | $ 19.03 | ||
Description
General part information
D12S Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.3V 45A 7V - 13.2V Input
