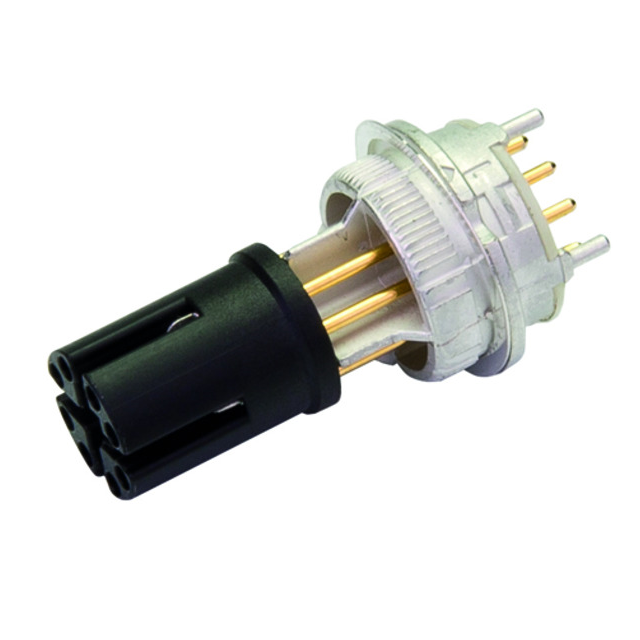

100007550

Active

Telegartner Inc

CU-CN M12X-BS C6A THR W/O HOUS

Search across all available documentation for this part.

Active

Telegartner Inc

CU-CN M12X-BS C6A THR W/O HOUS

Technical Specifications

Parameters and characteristics for this part

Specification	100007550

Applications	Industrial
Color	Black
Connector Type	Female Sockets, Insert
Contact Finish - Mating	Gold
Contact Material	Bronze
Current Rating (Amps)	0.5 A
Features	Board Guide, Insert Only, Requires Shell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Type	Through Hole
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	X
Shell Size - Insert	M12-8
Shielding	Unshielded
Termination	Solder
Voltage Rating	50 VAC, 60 VDC

Part	Termination	Connector Type	Shielding	Orientation	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Features	Voltage Rating	Applications	Number of Positions	Mounting Type	Contact Finish - Mating	Color	Primary Material	Shell Size - Insert	Contact Material	Mounting Feature	Insert Material	Shell Finish	Current Rating (Amps)
Telegartner Inc 100007548	Solder	Female Sockets Plug	Unshielded	X	IP67 - Dust Tight Waterproof	85 °C	-40 °C	Brass and Zinc Die Cast	Board Guide	50 VAC 60 VDC	Industrial	8	Panel Mount Through Hole	Gold	Silver	Metal	M12-8	Bronze	Bulkhead - Front Side Nut	Nylon Polyamide (PA)	Nickel	0.5 A
Telegartner Inc 100007427	Solder	Female Sockets Plug	Unshielded	X	IP67 - Dust Tight Waterproof	85 °C	-40 °C	Brass and Zinc Die Cast	Board Guide	50 VAC 60 VDC	Industrial	8	Panel Mount Through Hole	Gold	Silver	Metal	M12-8	Bronze	Bulkhead - Front Side Nut	Nylon Polyamide (PA)	Nickel	0.5 A
Telegartner Inc 100007550	Solder	Female Sockets Insert	Unshielded	X	IP67 - Dust Tight Waterproof	85 °C	-40 °C		Board Guide Insert Only Requires Shell	50 VAC 60 VDC	Industrial	8	Through Hole	Gold	Black		M12-8	Bronze		Nylon Polyamide (PA)		0.5 A
Telegartner Inc 100007429	Solder	Female Sockets Plug	Unshielded	X	IP67 - Dust Tight Waterproof	85 °C	-40 °C	Brass and Zinc Die Cast	Board Guide	50 VAC 60 VDC	Industrial	8	Panel Mount Through Hole	Gold	Silver	Metal	M12-8	Bronze	Bulkhead - Rear Side Nut	Nylon Polyamide (PA)	Nickel	0.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (Data) Position Circular Connector Insert, Female Sockets Solder
