PXD15-24D12

Active

TDK-LAMBDA

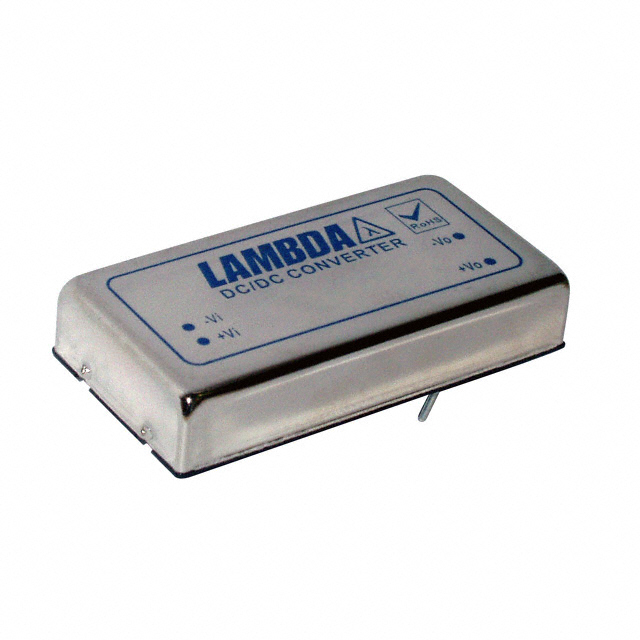

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 2:1, 15 W, 2 OUTPUT, 12 V, 625 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPXD10,15,20 Series Datasheet Datasheet

PXD15-24D12

Active

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 2:1, 15 W, 2 OUTPUT, 12 V, 625 MA

Deep-Dive with AI

DocumentsPXD10,15,20 Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXD15-24D12

Applications	ITE (Commercial)
Current - Output (Max)	625 mA
Current - Output (Max)	625 mA
Efficiency	86 %
Features	SCP, OCP, OVP
Mounting Type	Through Hole
Number of Outputs	2
Package / Case	6-DIP Module, 4 Leads
Power (Watts)	15 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

PXD15 Series

Part	Voltage - Output 1	Voltage - Isolation	Efficiency	Features	Type	Power (Watts)	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Package / Case	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Applications	Voltage - Output 2	Mounting Type	Current - Output (Max) [Max]
TDK-LAMBDA PXD15-24D12	12 V	1.6 kV	86 %	OCP OVP SCP	Isolated Module	15 W	625 mA	625 mA	18 V	36 V	6-DIP Module 4 Leads	2	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	ITE (Commercial)	-12 V	Through Hole
TDK-LAMBDA PXD15-48D12	12 V	1.6 kV	88 %	OCP OVP SCP	Isolated Module	15 W	625 mA	625 mA	36 V	75 V	6-DIP Module 4 Leads	2	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	ITE (Commercial)	-12 V	Through Hole
TDK-LAMBDA PXD15-12S15	15 V	1.6 kV	86 %	OCP OVP SCP	Isolated Module	15 W			9 V	18 V	6-DIP Module 4 Leads	1	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	ITE (Commercial)		Through Hole	1 A
TDK-LAMBDA PXD15-48S3P3	3.3 V	1.6 kV	81 %	OCP OVP SCP	Isolated Module	15 W			36 V	75 V	6-DIP Module 4 Leads	1	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	ITE (Commercial)		Through Hole	4 A
TDK-LAMBDA PXD15-12S12	12 V	1.6 kV		OCP OVP SCP	Isolated Module	15 W			9 V	18 V	6-DIP Module 4 Leads	1	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	ITE (Commercial)		Through Hole	1.25 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 68.25
		10	$ 64.89
		25	$ 60.93
		50	$ 57.60
Newark	Each	1	$ 68.25
		10	$ 64.89
		25	$ 60.93
		50	$ 57.60

Description

General part information

PXD15 Series

PXD15-24D12 is a PXD series 15W DC-DC converter in a industry standard 2" x 1" footprint. It is used in telecom, datacom and point of load applications.
