R191968001

Active

Radiall USA, Inc.

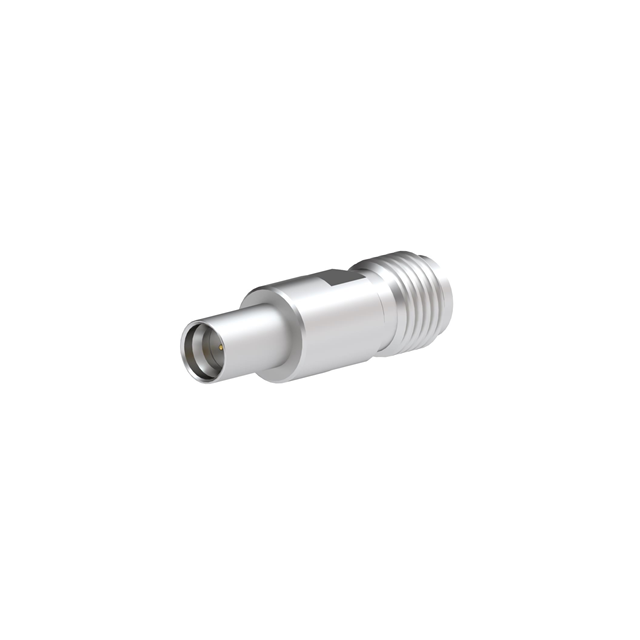

RF CONNECTOR ADAPTER, SMA2.9-SMP, CABLE MOUNT, FEMALE-MALE

Deep-Dive with AI

Search across all available documentation for this part.

R191968001

Active

Radiall USA, Inc.

RF CONNECTOR ADAPTER, SMA2.9-SMP, CABLE MOUNT, FEMALE-MALE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R191968001

Adapter Series	SMA to SMP
Adapter Type	Plug to Jack
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Dielectric Material	Polyamide (PA), Nylon, Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Features	Full Detent
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

R19196 Series

Part	Conversion Type	Convert From (Adapter End)	Convert To (Adapter End)	Center Gender	Frequency - Max [Max]	Impedance	Mounting Type	Style	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Dielectric Material	Adapter Type	Center Contact Plating	Adapter Series	Fastening Type	Features
Radiall USA, Inc. R191969002W	Between Series	Female Socket SMA Jack	Female Socket SMP Jack	Female to Female	40 GHz	50 Ohms	Free Hanging (In-Line)	Straight	Beryllium Copper	-65 ░C	165 °C	Stainless Steel	Polyamide (PA) Nylon Polytetrafluoroethylene (PTFE)	Jack to Jack	Gold	SMA to SMP	Snap-On Threaded
Radiall USA, Inc. R191966001	Between Series	SMA Plug Male Pin		Male to Male	40 GHz	50 Ohms	Free Hanging (In-Line)	Straight	Beryllium Copper	-65 ░C	165 °C	Stainless Steel	Polyamide (PA) Nylon Polytetrafluoroethylene (PTFE)	Plug to Plug	Gold	SMA to SMP	Snap-On Threaded	Full Detent
Radiall USA, Inc. R191967002W	Between Series	SMA Plug Male Pin	Female Socket SMP Jack		40 GHz	50 Ohms	Free Hanging (In-Line)	Straight	Beryllium Copper	-65 ░C	165 °C	Stainless Steel	Polyamide (PA) Nylon Polytetrafluoroethylene (PTFE)	Plug to Jack	Gold	SMA to SMP	Snap-On Threaded
Radiall USA, Inc. R191968001W	Between Series	Female Socket SMA Jack			40 GHz	50 Ohms	Free Hanging (In-Line)	Straight	Beryllium Copper	-65 ░C	165 °C		Polyamide (PA) Nylon Polytetrafluoroethylene (PTFE)	Plug to Jack	Gold	SMA to SMP	Snap-On Threaded	Full Detent
Radiall USA, Inc. R191966001W	Between Series	SMA Plug Male Pin		Male to Male	40 GHz	50 Ohms	Free Hanging (In-Line)	Straight	Beryllium Copper	-65 ░C	165 °C	Stainless Steel	Polyamide (PA) Nylon Polytetrafluoroethylene (PTFE)	Plug to Plug	Gold	SMA to SMP	Snap-On Threaded	Full Detent
Radiall USA, Inc. R191967002	Between Series	SMA Plug Male Pin	Female Socket SMP Jack		40 GHz	50 Ohms	Free Hanging (In-Line)	Straight	Beryllium Copper	-65 ░C	165 °C	Stainless Steel	Polyamide (PA) Nylon Polytetrafluoroethylene (PTFE)	Plug to Jack	Gold	SMA to SMP	Snap-On Threaded
Radiall USA, Inc. R191968001	Between Series	Female Socket SMA Jack			40 GHz	50 Ohms	Free Hanging (In-Line)	Straight	Beryllium Copper	-65 ░C	165 °C		Polyamide (PA) Nylon Polytetrafluoroethylene (PTFE)	Plug to Jack	Gold	SMA to SMP	Snap-On Threaded	Full Detent

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 91.09

Description

General part information

R19196 Series

Adapter Coaxial Connector SMA Jack, Female Socket To SMP Plug, Male Pin 50 Ohms
