25010 BK005

Active

ALPHA WIRE

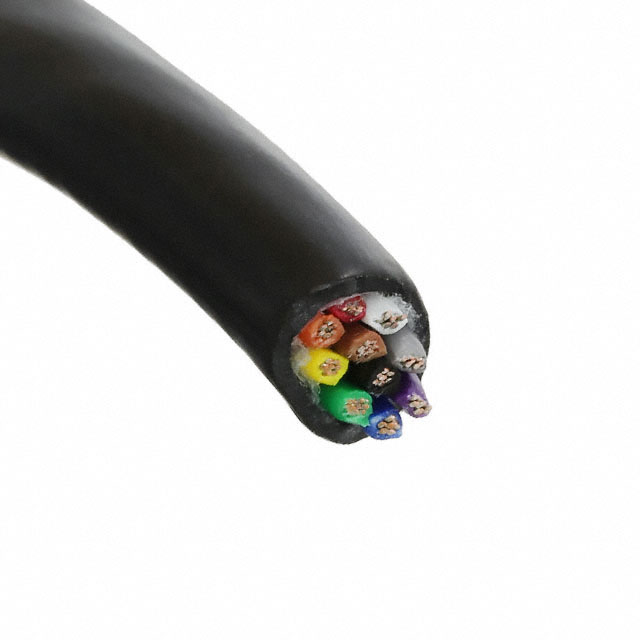

CABLE 10COND 22AWG BLACK 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 10COND 22AWG BLACK 100'

Technical Specifications

Parameters and characteristics for this part

Specification	25010 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	0.268 in
Jacket (Insulation) Diameter [diameter]	6.81 mm
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	10
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Voltage	300 V
Wire Gauge	22 AWG

Part	Features	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket Color	Jacket (Insulation) Material	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Cable Type	Length [x]	Length [x]	Ratings	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]
ALPHA WIRE 25010 BK005	Biological Compatibility Rip Cord	300 V	0.268 in	6.81 mm	22 AWG	Black	Polyurethane (PU)	Copper Tinned	7	30 AWG	10	Multi-Conductor	30.5 m	100 ft	ISO 10993 UL Style 20668	Poly-Vinyl Chloride (PVC)	-30 ░C	90 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 478.26

General part information

10 Conductor Multi-Conductor Cable Black 22 AWG 100.0' (30.5m)
