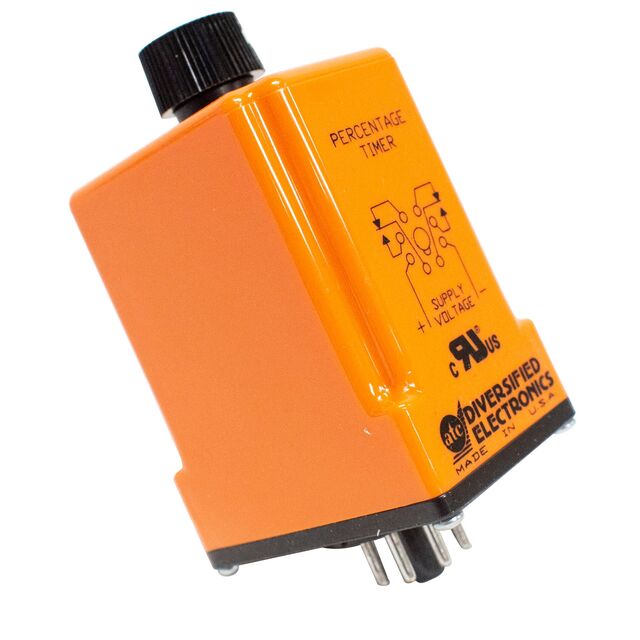

TDP-120-A-K-A-300
ActiveATC-Diversified Electronics
RELAY TIME DELAY 300SEC 10A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TDP-120-A-K-A-300 |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 10 A |
| Delay Time [Max] | 300 Sec |
| Delay Time [Min] | 3 Sec |
| Function | Repeat Cycle |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 232.30 | |
| 10 | $ 224.55 | |||
| 25 | $ 209.07 | |||
Description
General part information
TDP-120 Series
Repeat Cycle Time Delay Relay DPDT (2 Form C) 3 Sec ~ 300 Sec Delay 10A @ 250VAC/24VDC Socketable
