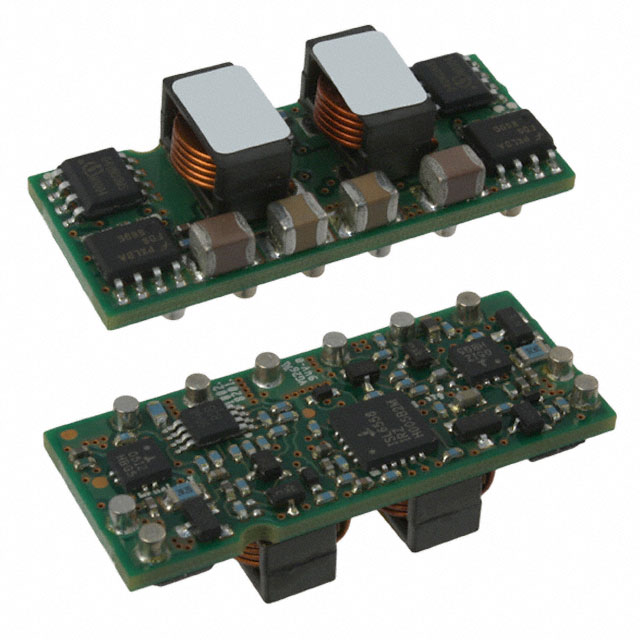

ATS030A0X3-SRPHZ
ActiveOmniOn Power™
DC DC CONVERTER 0.8-2.75V 165W
Deep-Dive with AI
Search across all available documentation for this part.
ATS030A0X3-SRPHZ
ActiveOmniOn Power™
DC DC CONVERTER 0.8-2.75V 165W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS030A0X3-SRPHZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 30 A |
| Efficiency | 93 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-SMD Module |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [x] | 1.3 " |
| Size / Dimension [y] | 0.36 " |
| Size / Dimension [y] | 9.1 mm |
| Size / Dimension [z] | 13.5 mm |
| Size / Dimension [z] | 0.53 " |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 6 V |
| Voltage - Output 1 [Max] | 2.75 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 26.26 | |
| Digi-Reel® | 1 | $ 26.26 | ||
| Tape & Reel (TR) | 200 | $ 22.22 | ||
Description
General part information
ATS030 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.75V 30A 6V - 14V Input
