BWA-9O6-AS
ActiveBANNER ENGINEERING

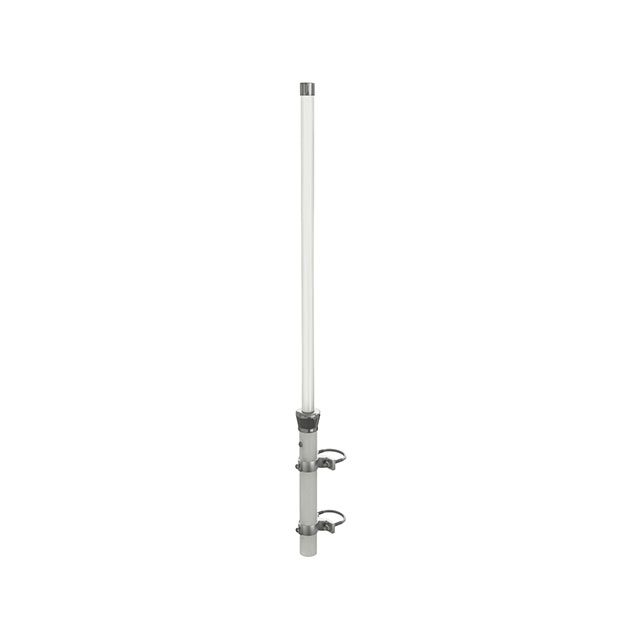

BWA-9O6-AS ANTENNA OMNI 900MHZ 6 DBI FIBERGLASS 23.6 IN N FEMALE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BWA-9O6-AS |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | General Purpose |
| Frequency (Center/Band) | 900 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Gain | 6 dB |
| Height (Max) [Max] | 23.622 " |
| Height (Max) [Max] | 600 mm |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Termination | N Type Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BWA-9O6 Series
RF ANTENNA General Purpose Whip, Straight N Type Female Bracket Mount
