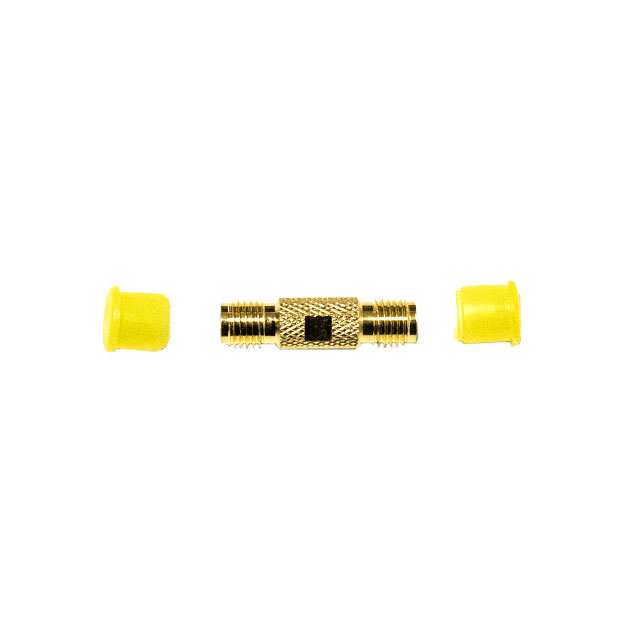

BU-P72966

Active

Mueller Electric Co

CONN ADAT JACK-JACK SMA 50 OHM

Search across all available documentation for this part.

Active

Mueller Electric Co

CONN ADAT JACK-JACK SMA 50 OHM

Technical Specifications

Parameters and characteristics for this part

Part	Impedance	Style	Body Finish	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Dielectric Material	Center Contact Plating	Conversion Type	Center Gender	Adapter Series	Convert To (Adapter End)	Center Contact Material	Adapter Type	Frequency - Max [Max]	Body Material	Housing Color	Includes	Fastening Type	Contact Termination	Connector Style	Connector Type	Mounting Type	Shield Termination	Cable Group	Number of Ports	Mating Cycles
Mueller Electric Co BU-P72973	50 Ohms	Straight	Gold	Female Socket SMA Jack	-50 °C	105 ░C	Flange	Polytetrafluoroethylene (PTFE)	Gold	Same Series	Female to Female	SMA to SMA	Female Socket SMA Jack	Beryllium Copper	Jack to Jack	18 GHz	Brass
Mueller Electric Co BU-P72981	50 Ohms		Gold		-50 °C	170 °C		Polytetrafluoroethylene (PTFE)	Gold					Beryllium Copper		3 GHz	Brass	Gold	1 Connector 1 Ferrule	Snap-On	Crimp	SMB	Female Socket Plug	Free Hanging (In-Line)	Crimp	188 316 RG-174	1
Mueller Electric Co BU-P72966	50 Ohms	Straight	Gold	Female Socket SMA Jack					Gold	Same Series	Female to Female	SMA to SMA	Female Socket SMA Jack	Beryllium Copper Brass	Jack to Jack	18 GHz	Brass							Free Hanging (In-Line)				500
Mueller Electric Co BU-P72979	50 Ohms	Straight	Gold	Female Socket SMB Plug					Gold	Between Series	Female to Female	SMA to SMB	Female Socket SMA Jack		Plug to Jack	4 GHz	Brass			Snap-On Threaded				Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
