XS5G-D4S2

Active

Omron Electronics Inc-EMC Div

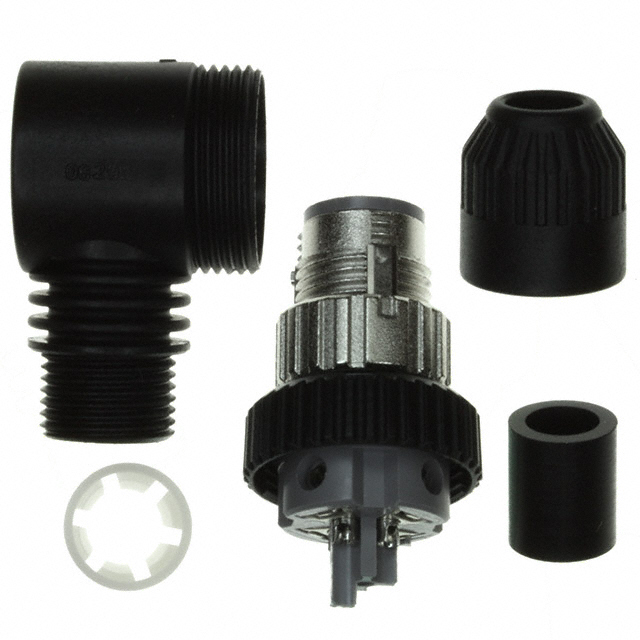

CONN PLUG MALE 4POS GOLD SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

XS5G-D4S2

Active

Omron Electronics Inc-EMC Div

CONN PLUG MALE 4POS GOLD SCREW

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XS5G-D4S2

Backshell Material, Plating	Polybutylene Terephthalate (PBT)
Cable Opening [Max] [custom]	0.236 in
Cable Opening [Max] [custom]	6 mm
Cable Opening [Min] [custom]	5 mm
Cable Opening [Min] [custom]	0.197 in
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Current Rating (Amps)	4 A
Fastening Type	Push-Twist
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-4
Termination	Screw

XS5G Series

Part	Mounting Type	Insert Material	Note	Contact Type	Shell Finish	Housing Color	Type	Orientation	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Material Flammability Rating	Connector Type	Shell Material	Fastening Type	Contact Shape	Shell Size - Insert	Ingress Protection	Features	Backshell Material, Plating	Termination	Current Rating (Amps)	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Contact Finish - Mating	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Contact Material
Omron Electronics Inc-EMC Div XS5G-D4C5	Free Hanging (In-Line)	Polybutylene Terephthalate Resin (PBT)	Contacts Not Included	Crimp	Nickel	Silver	For Male Pins	Keyed	4	70 °C	-25 °C	Unshielded	UL94 V-0	Plug Housing	Zinc Alloy	Bayonet Lock	Circular	M12-4	IP67 - Dust Tight Waterproof	Backshell
Omron Electronics Inc-EMC Div XS5G-D5S1	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)			Nickel			Keyed		70 °C	-25 °C		UL94 V-0	Male Pins Plug	Zinc Alloy	Push-Twist		M12-5	IP67 - Dust Tight Waterproof	Backshell	Polybutylene Terephthalate (PBT)	Screw	4 A	Metal	16 Áin	0.41 Ám	Black Silver	Gold	0.236 in	6 mm	5 mm	0.197 in
Omron Electronics Inc-EMC Div XS5G-D5S7	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)			Nickel			Keyed		70 °C	-25 °C		UL94 V-0	Male Pins Plug	Zinc Alloy	Push-Twist		M12-5	IP67 - Dust Tight Waterproof	Backshell	Polybutylene Terephthalate (PBT)	Screw	4 A	Metal	16 Áin	0.41 Ám	Black Silver	Gold					7 mm	0.276 in 0.315 in	8 mm
Omron Electronics Inc-EMC Div XS5G-D4S9	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)			Nickel			Keyed	4	70 °C	-25 °C		UL94 V-0	Male Pins Plug	Zinc Alloy	Push-Twist		M12-4	IP67 - Dust Tight Waterproof	Backshell	Polybutylene Terephthalate (PBT)	Screw	4 A	Metal	16 Áin	0.41 Ám	Black Silver	Gold								0.276 in	7 mm	0.236 in	6 mm
Omron Electronics Inc-EMC Div XS5G-D4C3	Free Hanging (In-Line)	Polybutylene Terephthalate Resin (PBT)	Contacts Not Included	Crimp	Nickel	Silver	For Male Pins	Keyed	4	70 °C	-25 °C	Unshielded	UL94 V-0	Plug Housing	Zinc Alloy	Bayonet Lock	Circular	M12-4	IP67 - Dust Tight Waterproof	Backshell
Omron Electronics Inc-EMC Div XS5G-D425	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)			Nickel			Keyed	4	70 °C	-25 °C		UL94 V-0	Male Pins Plug	Zinc Alloy	Push-Twist		M12-4	IP67 - Dust Tight Waterproof	Backshell	Polybutylene Terephthalate (PBT)		4 A	Metal	16 Áin	0.41 Ám	Black Silver	Gold								0.157 in		0.118 in	3 mm	4 mm	Brass
Omron Electronics Inc-EMC Div XS5G-D5S9	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)			Nickel			Keyed		70 °C	-25 °C		UL94 V-0	Male Pins Plug	Zinc Alloy	Push-Twist		M12-5	IP67 - Dust Tight Waterproof	Backshell	Polybutylene Terephthalate (PBT)	Screw	4 A	Metal	16 Áin	0.41 Ám	Black Silver	Gold								0.276 in	7 mm	0.236 in	6 mm
Omron Electronics Inc-EMC Div XS5G-D4S3	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)			Nickel			Keyed	4	70 °C	-25 °C		UL94 V-0	Male Pins Plug	Zinc Alloy	Push-Twist		M12-4	IP67 - Dust Tight Waterproof	Backshell	Polybutylene Terephthalate (PBT)	Screw	4 A	Metal	16 Áin	0.41 Ám	Black Silver	Gold	0.197 in	5 mm	4 mm	0.157 in
Omron Electronics Inc-EMC Div XS5G-D4S2	Free Hanging (In-Line) Right Angle	Polybutylene Terephthalate (PBT)			Nickel			Keyed	4	70 °C	-25 °C		UL94 V-0	Male Pins Plug	Zinc Alloy	Push-Twist		M12-4	IP67 - Dust Tight Waterproof	Backshell	Polybutylene Terephthalate (PBT)	Screw	4 A	Metal	16 Áin	0.41 Ám	Black Silver	Gold	0.236 in	6 mm	5 mm	0.197 in
