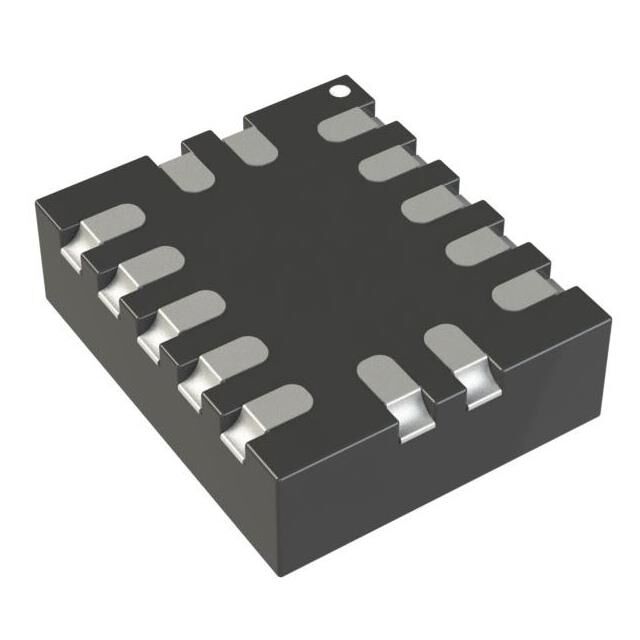

MPQ8847AGQB-AEC1-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK PROG 6A 14QFN

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG BUCK PROG 6A 14QFN

Technical Specifications

Parameters and characteristics for this part

Specification	MPQ8847AGQB-AEC1-Z

Current - Output	6 A
Frequency - Switching [Max]	2.2 MHz
Frequency - Switching [Min]	850 kHz
Function	Step-Down
Grade	Automotive
Mounting Type	Wettable Flank, Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Programmable
Package / Case	14-VFQFN
Qualification	AEC-Q100
Supplier Device Package	14-QFN (2.5x3)
Synchronous Rectifier	True
Topology	Buck
Voltage - Input (Max) [Max]	6 V
Voltage - Input (Min) [Min]	2.7 V
Voltage - Output (Max) [Max]	1.235 V
Voltage - Output (Min/Fixed)	0.6 V

Part	Output Configuration	Package / Case	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Output Type	Supplier Device Package	Frequency - Switching [Min]	Frequency - Switching [Max]	Function	Topology	Qualification	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Grade	Synchronous Rectifier	Mounting Type	Voltage - Input (Min) [Min]
MONOLITHIC POWER SYSTEMS (MPS) MPQ8847AGQB-AEC1-Z	Positive	14-VFQFN	1.235 V	0.6 V	6 V	Programmable	14-QFN (2.5x3)	850 kHz	2.2 MHz	Step-Down	Buck	AEC-Q100	1	-40 °C	125 ¯C	6 A	Automotive		Surface Mount Wettable Flank	2.7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Programmable 0.6V 1 Output 6A 14-VFQFN
