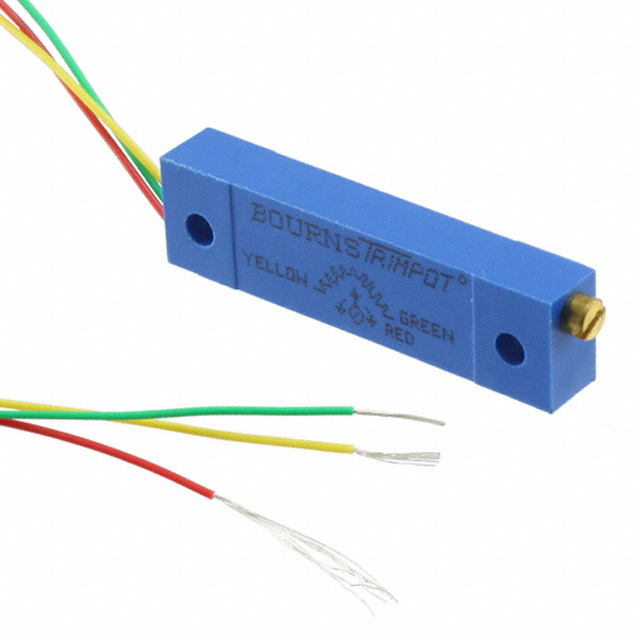

3057L-1-101

Active

Bourns Inc.

TRIMMER 100 OHM 1W WIRE LEADS

Search across all available documentation for this part.

Active

Bourns Inc.

TRIMMER 100 OHM 1W WIRE LEADS

Technical Specifications

Parameters and characteristics for this part

Part	Resistance	Resistive Material	Adjustment Type	Termination Style	Power (Watts)	Mounting Type	Number of Turns	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Tolerance
Bourns Inc. 3057L-1-203M	20 kOhms	Wirewound	Side Adjustment	Wire Leads	1 W	Panel Mount Wire Leads	22	50 ppm/°C	0.315 " 8 mm	0.19 in 4.83 mm	5 %
Bourns Inc. 3057L-1-500M	50 Ohms	Wirewound	Side Adjustment	Wire Leads	1 W	Panel Mount Wire Leads	22	50 ppm/°C	0.315 " 8 mm	0.19 in 4.83 mm	5 %
Bourns Inc. 3057L-1-503M	50 kOhms	Wirewound	Side Adjustment	Wire Leads	1 W	Panel Mount Wire Leads	22	50 ppm/°C	0.315 " 8 mm	0.19 in 4.83 mm	5 %
Bourns Inc. 3057L-1-200M	20 Ohms	Wirewound	Side Adjustment	Wire Leads	1 W	Panel Mount Wire Leads	22	50 ppm/°C	0.315 " 8 mm	0.19 in 4.83 mm	5 %
Bourns Inc. 3057L-1-101M	100 Ohms	Wirewound	Side Adjustment	Wire Leads	1 W	Panel Mount Wire Leads	22	50 ppm/°C	0.315 " 8 mm	0.19 in 4.83 mm	5 %
Bourns Inc. 3057L-1-203	20 kOhms	Wirewound	Side Adjustment	Wire Leads	1 W	Chassis Mount	22	50 ppm/°C	0.315 " 8 mm	0.19 in 4.83 mm	5 %
Bourns Inc. 3057L-1-201M	200 Ohms	Wirewound	Side Adjustment	Wire Leads	1 W	Panel Mount Wire Leads	22	50 ppm/°C	0.315 " 8 mm	0.19 in 4.83 mm	5 %
Bourns Inc. 3057L-1-201	200 Ohms	Wirewound	Side Adjustment	Wire Leads	1 W	Chassis Mount	22	50 ppm/°C	0.315 " 8 mm	0.19 in 4.83 mm	5 %
Bourns Inc. 3057L-1-253	25 kOhms	Wirewound	Side Adjustment	Wire Leads	1 W	Chassis Mount	22	50 ppm/°C	0.315 " 8 mm	0.19 in 4.83 mm	5 %
Bourns Inc. 3057L-1-101	100 Ohms	Wirewound	Side Adjustment	Wire Leads	1 W	Chassis Mount	22	50 ppm/°C	0.315 " 8 mm	0.19 in 4.83 mm	5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 37.73

General part information

100 Ohms 1W Wire Leads Chassis Mount Trimmer Potentiometer Wirewound 22.0 Turn Side Adjustment
