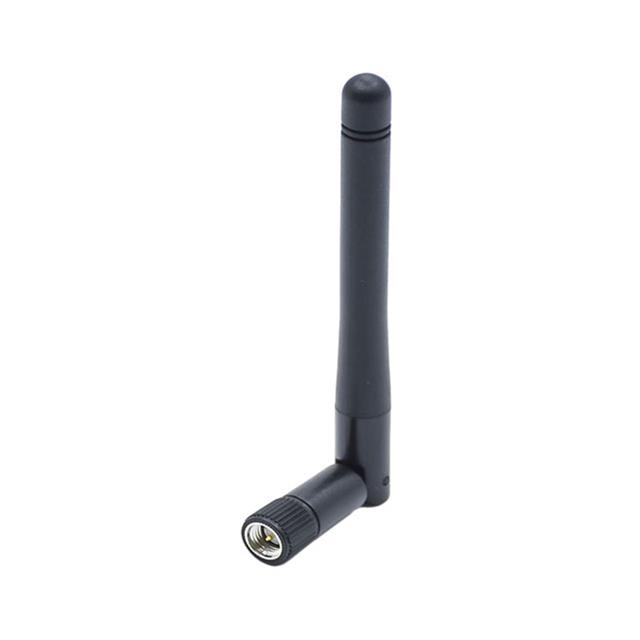

RST-MG7-109010-22M-GE-001
ActiveRaltron Electronics
RF ANT 824-960MHZ/1800-1900MHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RST-MG7-109010-22M-GE-001
ActiveRaltron Electronics
RF ANT 824-960MHZ/1800-1900MHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RST-MG7-109010-22M-GE-001 |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | Cellular |
| Frequency (Center/Band) | 900 MHz, 850 MHz, 1.9 GHz, 1.8 GHz |
| Frequency Range [Max] | 960 MHz, 1.9 GHz |
| Frequency Range [Min] | 1.8 GHz, 824 MHz |
| Gain | -3 dBic |
| Gain [Max] | 2 dBi |
| Gain [Min] | 1 dBi |
| Height (Max) [Max] | 109 mm |
| Height (Max) [Max] | 4.291 in |
| Ingress Protection | IP67, IP66 |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| RF Family/Standard | Cellular |
| VSWR | 4.5, 5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.79 | |
| 10 | $ 5.92 | |||
| 50 | $ 4.71 | |||
| 100 | $ 4.33 | |||
| 250 | $ 3.91 | |||
| 500 | $ 3.85 | |||
Description
General part information
RST-MG7 Series
RF ANTENNA Cellular Whip, Tilt SMA Male Connector Mount
