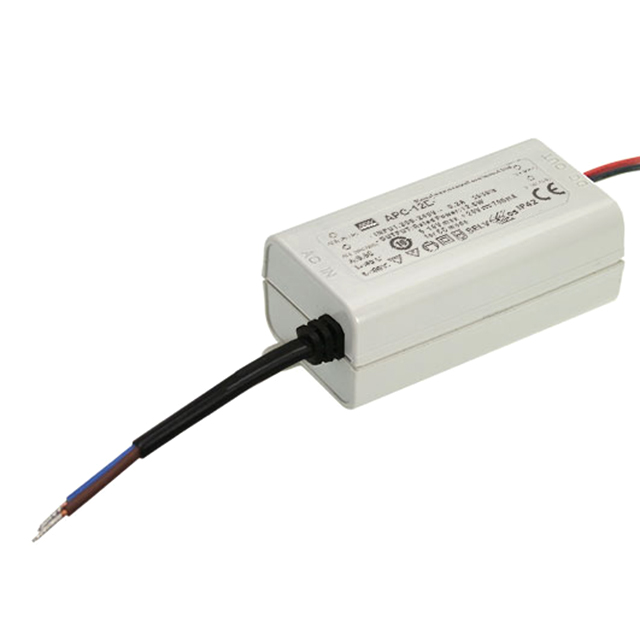

APC-12E-350

Obsolete

MEAN WELL USA Inc.

LED DRIVER CC AC/DC 9-36V 350MA

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

LED DRIVER CC AC/DC 9-36V 350MA

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Features	Topology	Number of Outputs	Voltage - Isolation	Power (Watts)	Voltage - Output [Max]	Voltage - Output [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Mounting Type	Type	Approval Agency	Termination Style	Ratings
MEAN WELL USA Inc. APC-12E-350	81 %	OVP SCP	AC DC Converter	1	3750 V	13 W	36 V	9 V	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	264 VAC	350 mA	70 °C	-30 ░C	180 VAC	Chassis Mount	Constant Current	CE ENEC	Wire Leads	IP42
MEAN WELL USA Inc. APC-12-350		OVP SCP	AC DC Converter	1	3750 V	13 W	36 V	9 V	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	264 VAC	350 mA	70 °C	-30 ░C	90 VAC	Chassis Mount	Constant Current	CCC CE cURus	Wire Leads	IP42
MEAN WELL USA Inc. APC-12-700	80 %	OVP SCP	AC DC Converter	1	3750 V	13 W			29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	264 VAC	700 mA	70 °C	-30 ░C	90 VAC	Chassis Mount	Constant Current	CCC CE cURus	Wire Leads	IP42

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.24

General part information

350mA 9 ~ 36V Constant Current LED Driver AC DC Converter Topology 1 Output
