2964500

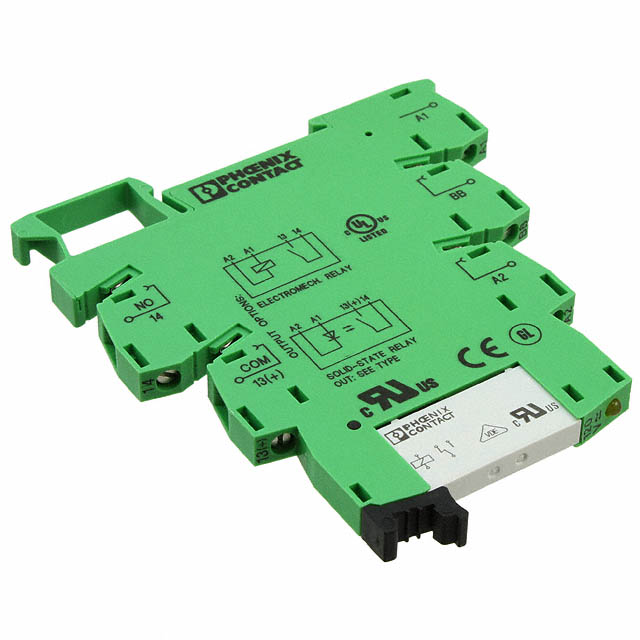

ActiveELECTROMECHANICAL RELAY 24VDC 2.67KOHM 6A SPDT(6.2X56X80)MM DIN RAIL RELAY MODULE
Deep-Dive with AI
Search across all available documentation for this part.
2964500
ActiveELECTROMECHANICAL RELAY 24VDC 2.67KOHM 6A SPDT(6.2X56X80)MM DIN RAIL RELAY MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2964500 |
|---|---|
| Coil Current | 9 mA |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A |
| Mounting Type | DIN Rail |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
29645 Series
The 2964500 is a general-purpose Relay Terminal Block with SPDT cadmium-free silver tin oxide contact, soldered-in miniature power relay, non latching coil, screw connection and quick-connect terminals. This PLC-series socket mount relay features less wiring effort, LED for indicating the switching state and safe isolation according to DIN EN 50178 (VDE 0160).
