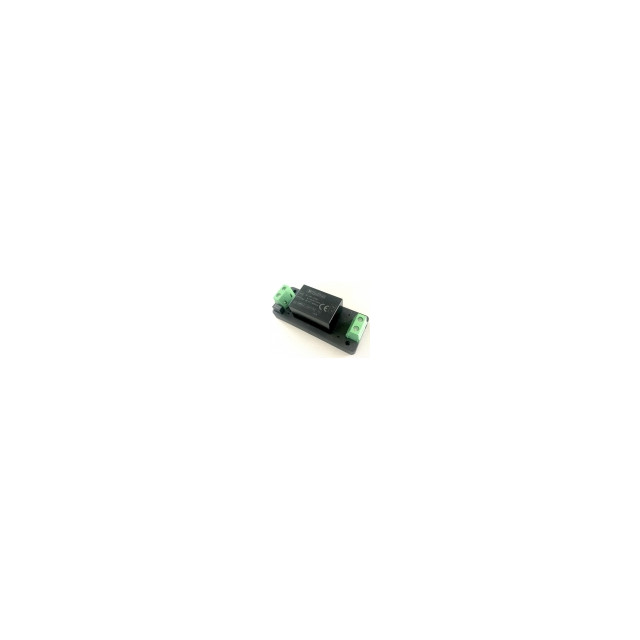

AMEL2-5S277NZ-STD

Active

aimtec

AC/DC DIN RAIL SUPPLY 5V 2W

Search across all available documentation for this part.

Active

aimtec

AC/DC DIN RAIL SUPPLY 5V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Power (Watts)	Efficiency	Load Regulation	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Line Regulation	Number of Outputs	Mounting Type	Type	Package / Case	Input Type	Standard Number	Features	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Isolation	Current - Output 1
aimtec AMEL2-9S277NZ	ITE (Commercial)	2 W	72 %	5 %	85 VAC	305 VAC	9 V	222 mA	0.87 in	0.71 in	1.33 "	18 mm	22.2 mm	33.7 mm	2 %	1	Through Hole	Enclosed	4-DIP Module
aimtec AMEL2-12S277NZ	ITE (Commercial)	2 W	76 %	5 %	85 VAC	305 VAC	12 V	167 mA	0.87 in	0.71 in	1.33 "	18 mm	22.2 mm	33.7 mm	2 %	1	Through Hole	Enclosed	4-DIP Module
aimtec AMEL2-24S277NZ	ITE (Commercial)	2 W	78 %	5 %	85 VAC	305 VAC	24 V	83 mA	0.87 in	0.71 in	1.33 "	18 mm	22.2 mm	33.7 mm	2 %	1	Through Hole	Enclosed	4-DIP Module
aimtec AMEL2-15S277NZ	ITE (Commercial)	2 W	76 %	5 %	85 VAC	305 VAC	15 V	133 mA	0.87 in	0.71 in	1.33 "	18 mm	22.2 mm	33.7 mm	2 %	1	Through Hole	Enclosed	4-DIP Module
aimtec AMEL2-5S277NZ-STD	ITE (Commercial)	2 W	70 %				5 V	400 mA	1.24 in	1.24 "	2.99 in	31.4 mm	31.5 mm	76 mm		1				AC	62368-1	Universal Input	85 VAC	305 VAC	4000 V
aimtec AMEL2-3.3S277NZ	ITE (Commercial)	2 W	65 %	5 %	85 VAC	305 VAC	3.3 V	600 mA	0.87 in	0.71 in	1.33 "	18 mm	22.2 mm	33.7 mm	2 %	1	Through Hole	Enclosed	4-DIP Module
aimtec AMEL2-5S277NZ-ST	ITE (Commercial)	2 W	70 %		85 VAC	305 VAC	5 V		1.24 in	1.06 in	2.99 in	26.8 mm	31.5 mm	76 mm		1	Chassis Mount	Enclosed			62368-1	Universal Input			4000 V	400 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

AC/DC DIN RAIL SUPPLY 5V 2W

Technical documentation and resources
