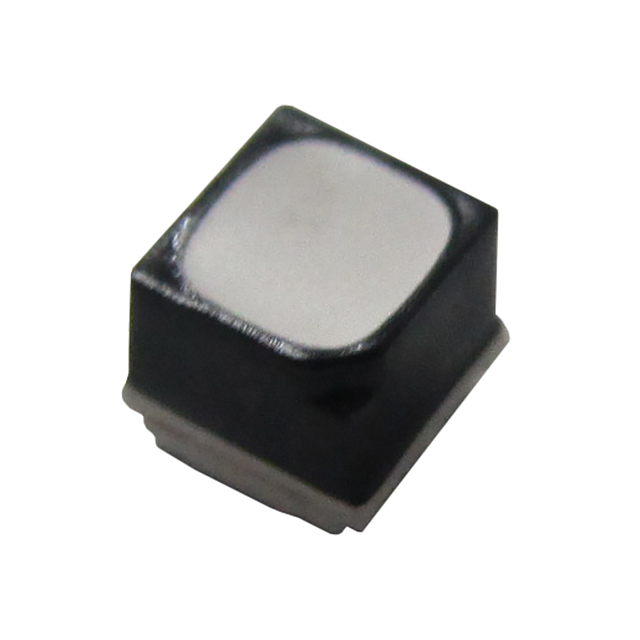

CLY6D-FKC-CNP1ST1E1BB7D3D3
ActiveCree LED
R:ANY 1 INTENSITY BIN FROM NP TO N,HUE:RB(619-624NM);G:ANY 1 INTENSITY BIN FROM ST TO Q,ANY 1 HUE FR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLY6D-FKC-CNP1ST1E1BB7D3D3
ActiveCree LED
R:ANY 1 INTENSITY BIN FROM NP TO N,HUE:RB(619-624NM);G:ANY 1 INTENSITY BIN FROM ST TO Q,ANY 1 HUE FR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLY6D-FKC-CNP1ST1E1BB7D3D3 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Independent |
| Current - Test [custom] | 15 mA |
| Current - Test [custom] | 10 mA |
| Current - Test [custom] | 10 mA |
| Height (Max) [Max] [z] | 2.6 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 1405 mcd, 268 mcd, 878 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, J-Lead |
| Size / Dimension [x] | 2.8 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 6-PLCC |
| Voltage - Forward (Vf) (Typ) [custom] | 2.1 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.7 V |
| Wavelength - Dominant | 622 nm, 530 nm, 470 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CLY6D Series
Red, Green, Blue (RGB) 622nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 2.7V Green, 3V Blue 6-SMD, J-Lead
