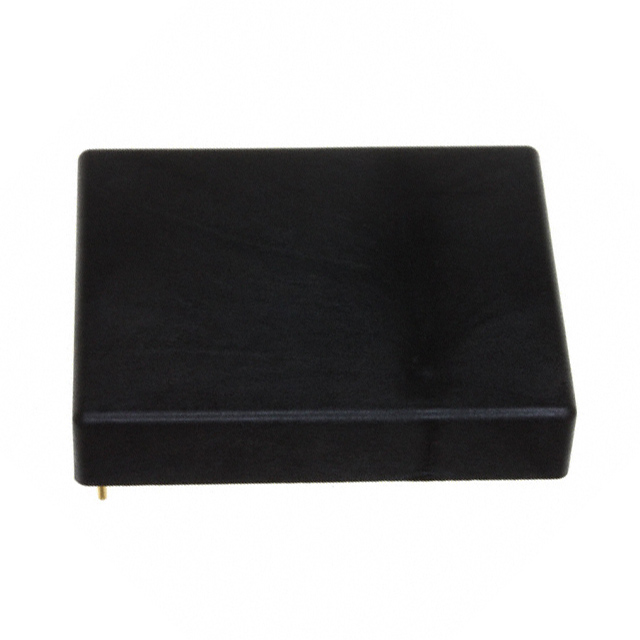

UHE-3.3/7500-D48-C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 25W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UHE-3.3/7500-D48-C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 25W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UHE-3.3/7500-D48-C |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 7.5 A |
| Efficiency | 88.7 % |
| Features | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9-DIP Module, 6 Leads |
| Power (Watts) | 25 W |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 40.64 mm |
| Size / Dimension [z] | 0.4 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
UHE-3.3 Series
Isolated Module DC DC Converter 1 Output 3.3V 7.5A 36V - 75V Input
