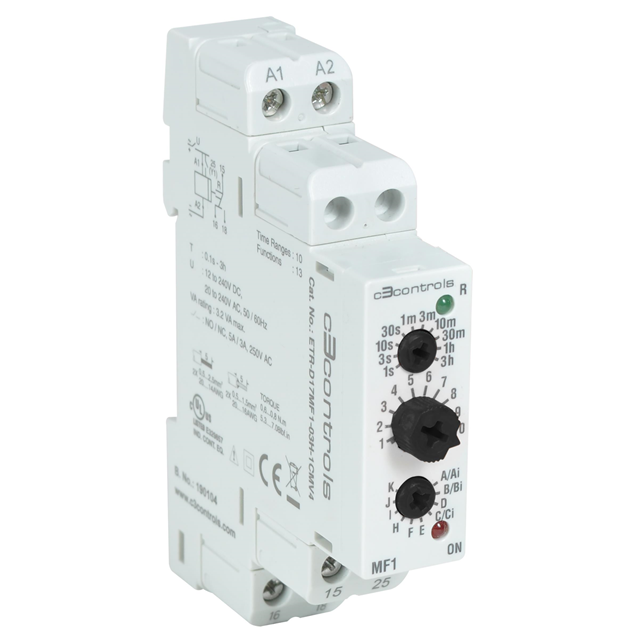

ETR-D17MF1-03H-1CMV4

Active

c3controls

RELAY TIME DELAY 3HR 5A 250V

Search across all available documentation for this part.

Active

c3controls

RELAY TIME DELAY 3HR 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	ETR-D17MF1-03H-1CMV4

Contact Rating @ Voltage	250 VAC, 5 A, 24 VDC
Delay Time [Max]	3 Hrs
Delay Time [Min]	1 Sec
Function	Programmable (Multi-Function)
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Screwdriver Slot
Timing Initiate Method	Trigger Signal, Input Voltage
Voltage - Supply [Max]	240 VAC, 240 VDC
Voltage - Supply [Min]	12 V, 20 VAC

Part	Timing Initiate Method	Delay Time [Min]	Delay Time [Max]	Function	Timing Adjustment Method	Termination Style	Contact Rating @ Voltage	Relay Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type
c3controls ETR-D17MF1-03H-1CMV4	Input Voltage Trigger Signal	1 Sec	3 Hrs	Programmable (Multi-Function)	Screwdriver Slot	Screw Terminal	5 A 24 VDC 250 VAC	Mechanical Relay	240 VAC 240 VDC	12 V 20 VAC	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 22.92

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 1 Sec ~ 3 Hrs Delay 5A @ 250VAC/24VDC DIN Rail

Technical documentation and resources

No documents available
