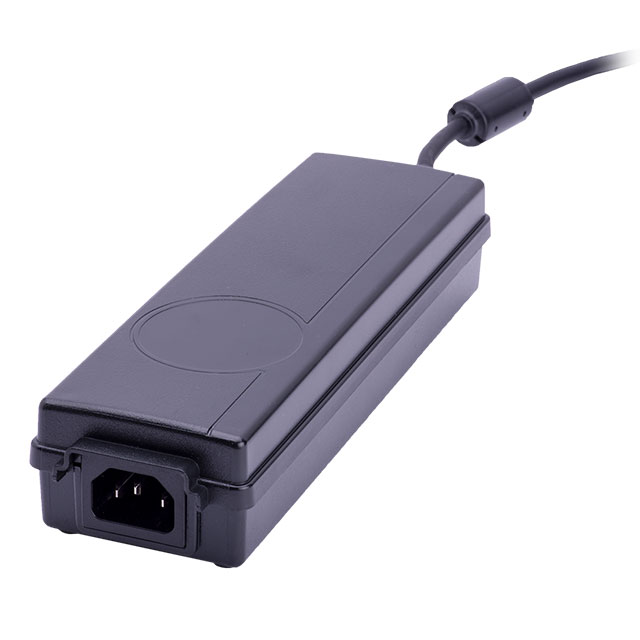

TE120A2402N01
ObsoleteSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 24V 120W
Deep-Dive with AI
Search across all available documentation for this part.
TE120A2402N01
ObsoleteSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 24V 120W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TE120A2402N01 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CE |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | Level VI |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C8 |
| Input Type | Cord |
| No Load Power Consumption | 210 mW |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 120 W |
| Region Utilized | International |
| Size / Dimension [x] | 8.36 in |
| Size / Dimension [x] | 212.4 mm |
| Size / Dimension [y] | 2.65 in |
| Size / Dimension [y] | 67.4 mm |
| Size / Dimension [z] | 1.74 in |
| Size / Dimension [z] | 44.3 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TE120A2402 Series
24V 120 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
