LCMXO256E-4MN100C

Active

LATTICE SEMICONDUCTOR

FLASH PLD, 4.2NS, CMOS, PBGA100, 8 X 8 MM, ROHS COMPLIANT, CSBGA-100

Search across all available documentation for this part.

Active

LATTICE SEMICONDUCTOR

FLASH PLD, 4.2NS, CMOS, PBGA100, 8 X 8 MM, ROHS COMPLIANT, CSBGA-100

Technical Specifications

Parameters and characteristics for this part

Specification	LCMXO256E-4MN100C

Mounting Type	Surface Mount
Number of I/O	78
Number of LABs/CLBs	32
Number of Logic Elements/Cells	256
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C

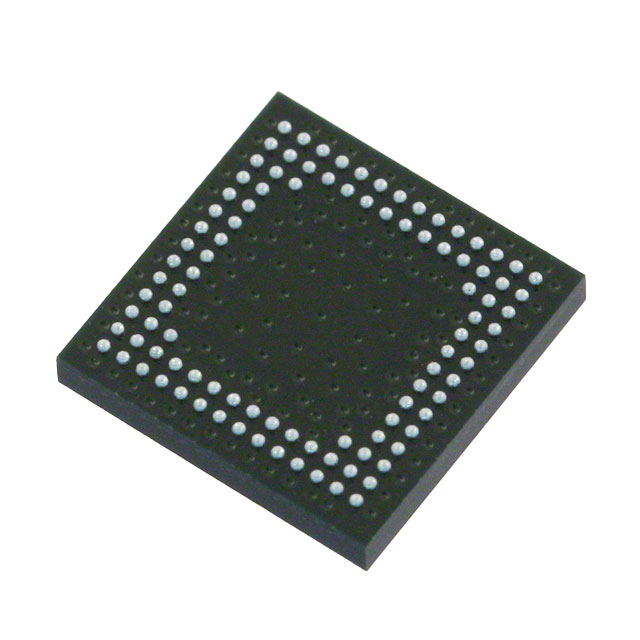

Package / Case	CSPBGA, 100-LFBGA
Supplier Device Package	100-CSBGA (8x8)

Part	Number of LABs/CLBs	Operating Temperature [Min]	Operating Temperature [Max]	Number of I/O	Supplier Device Package	Package / Case	Number of Logic Elements/Cells	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]
LATTICE SEMICONDUCTOR LCMXO256C-5MN100C	32	0 °C	85 °C	78	100-CSBGA (8x8)	100-LFBGA CSPBGA	256	Surface Mount	3.465 V	1.71 V
LATTICE SEMICONDUCTOR LCMXO256C-5TN100C	32	0 °C	85 °C	78	100-TQFP (14x14)	100-LQFP	256	Surface Mount	3.465 V	1.71 V
LATTICE SEMICONDUCTOR LCMXO256E-4TN100C	32	0 °C	85 °C	78	100-TQFP (14x14)	100-LQFP	256	Surface Mount
LATTICE SEMICONDUCTOR LCMXO256E-3M100C	32	0 °C	85 °C	78	100-CSBGA (8x8)	100-LFBGA CSPBGA	256	Surface Mount
LATTICE SEMICONDUCTOR LCMXO256C-4MN100C	32	0 °C	85 °C	78	100-CSBGA (8x8)	100-LFBGA CSPBGA	256	Surface Mount	3.465 V	1.71 V
LATTICE SEMICONDUCTOR LCMXO256C-4MN100I	32	-40 C	100 °C	78	100-CSBGA (8x8)	100-LFBGA CSPBGA	256	Surface Mount	3.465 V	1.71 V
LATTICE SEMICONDUCTOR LCMXO256C-3M100I	32	-40 C	100 °C	78	100-CSBGA (8x8)	100-LFBGA CSPBGA	256	Surface Mount	3.465 V	1.71 V
LATTICE SEMICONDUCTOR LCMXO256C-4M100C	32	0 °C	85 °C	78	100-CSBGA (8x8)	100-LFBGA CSPBGA	256	Surface Mount	3.465 V	1.71 V
LATTICE SEMICONDUCTOR LCMXO256E-3TN100C	32	0 °C	85 °C	78	100-TQFP (14x14)	100-LQFP	256	Surface Mount
LATTICE SEMICONDUCTOR LCMXO256E-4MN100C	32	0 °C	85 °C	78	100-CSBGA (8x8)	100-LFBGA CSPBGA	256	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	360	$ 10.40
Newark	Each	250	$ 11.20
		500	$ 10.88

General part information

MachXO Field Programmable Gate Array (FPGA) IC 78 256 100-LFBGA, CSPBGA
