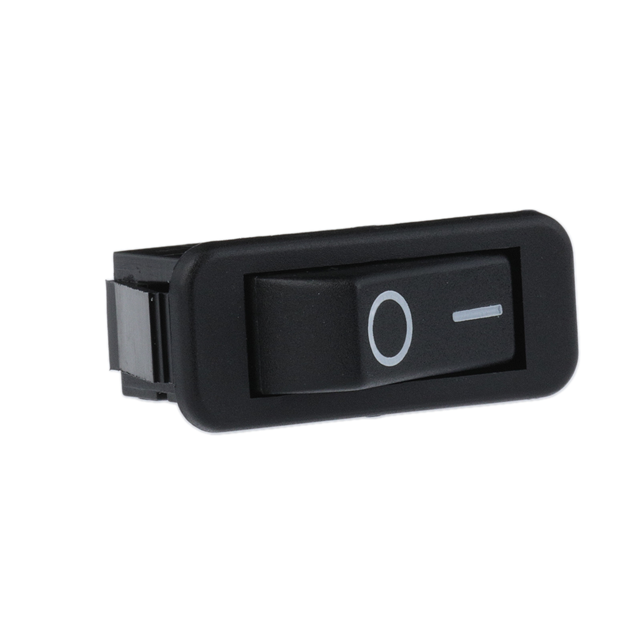

C1300ABAAA

Active

BULGIN LIMITED

SWITCH ROCKER SPST 20A 28V

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH ROCKER SPST 20A 28V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Current Rating (Amps)	Approval Agency	Voltage Rating - DC	Circuit	Color - Actuator/Cap	Switch Function	Actuator Marking	Actuator Type	Termination Style	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Features
BULGIN LIMITED C1300ABBB	250 V	20 A	CSA UL	24 V	SPST	Black	On-Off	No Marking	Concave (Curved)	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	30.1 mm	11.1 mm
BULGIN LIMITED C1300ABBB-602AW-B	250 V	20 A	CSA UL	24 V	SPST	Black	On-Off	O -	Concave (Curved)	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	30.1 mm	11.1 mm	Antimicrobial
BULGIN LIMITED C1300ABAAA		20 A	CSA UL	28 V	SPST	Black	On-Off	O I	Concave (Curved) - Illuminated	Quick Connect - 0.250" (6.3mm)		30.1 mm	11.1 mm
BULGIN LIMITED C1300ABBB-B	250 V	20 A	CSA UL	24 V	SPST	Black	On-Off	No Marking	Concave (Curved)	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	30.1 mm	11.1 mm	Antimicrobial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPST 20A (DC)

Technical documentation and resources
