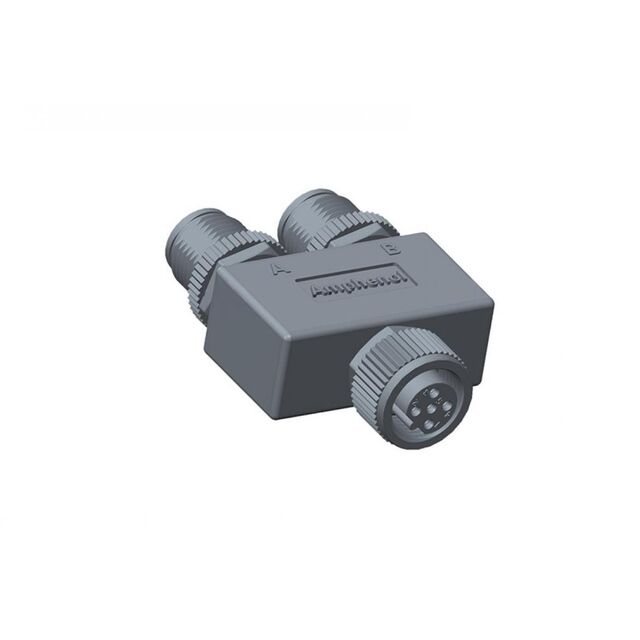

YA-B05F-B05M-B05M-01
ActiveAmphenol LTW
M SERIES SENSOR CONNECTOR, Y ADAPTOR, METAL, A CODING, 4A, 05 PINS, (END 1) FEMALE FEMALE, (END 2) MALE MALE, (END 3) MALE MALE,
Deep-Dive with AI
Search across all available documentation for this part.
YA-B05F-B05M-B05M-01
ActiveAmphenol LTW
M SERIES SENSOR CONNECTOR, Y ADAPTOR, METAL, A CODING, 4A, 05 PINS, (END 1) FEMALE FEMALE, (END 2) MALE MALE, (END 3) MALE MALE,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | YA-B05F-B05M-B05M-01 |
|---|---|
| Connector Style | Distributor Y-Shaped |
| Convert From (Adapter End) | Female Sockets |
| Convert To (Adapter End) | Male Pins (2) |
| Current Rating (Amps) | 4 A |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions (Convert From) | 5 |
| Number of Positions (Convert To) | 5 |
| Number of Positions (Convert To) | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Orientation (Convert From) | B |
| Orientation (Convert To) | B |
| Primary Material | Plastic |
| Shell Size - Insert (Convert From) | M12 |
| Shell Size - Insert (Convert To) [custom] | M12 |
| Shielding | Unshielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
YAB Series
Circular Connector Distributor Y-Shaped 5/5 (2) Female Sockets/Male Pins (2) Free Hanging (In-Line)
