R114665230
ActiveRadiall USA, Inc.

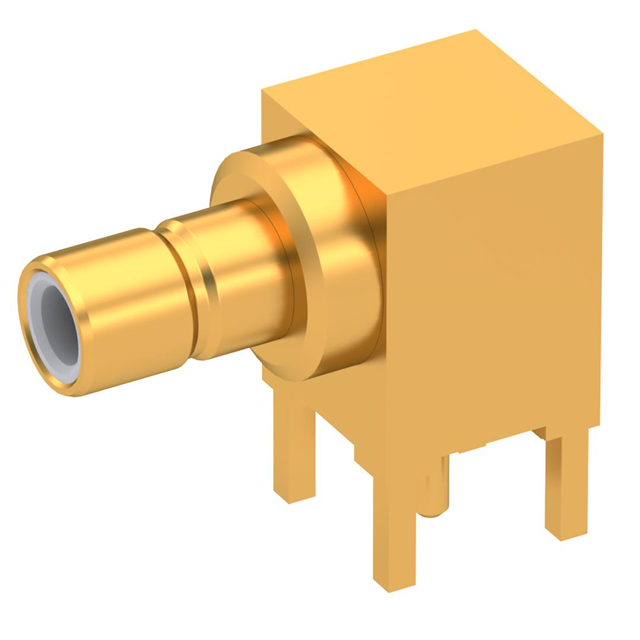

SMB / RIGHT ANGLE JACK RECEPTACL
Deep-Dive with AI
Search across all available documentation for this part.
R114665230
ActiveRadiall USA, Inc.
SMB / RIGHT ANGLE JACK RECEPTACL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R114665230 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
R11466 Series
| Part | Frequency - Max [Max] | Mounting Type | Connector Style | Voltage Rating | Shield Termination | Center Contact Plating | Dielectric Material | Body Finish | Mating Cycles | Housing Color | Fastening Type | Number of Ports | Impedance | Body Material | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | 4 GHz | Surface Mount Right Angle | SMB | 335 V | Solder | Gold | Polytetrafluoroethylene (PTFE) | Gold | 500 | Gold | Snap-On | 1 | 50 Ohms | Brass | Brass | -65 ░C | 165 °C | Male Pin Receptacle | Solder |
Radiall USA, Inc. | 4 GHz | Through Hole Right Angle | SMB | 500 V | Solder | Gold | Polytetrafluoroethylene (PTFE) | Nickel | 500 | Silver | Snap-On | 1 | 50 Ohms | Brass | Brass | -65 ░C | 165 °C | Male Pin Receptacle | Solder |
Radiall USA, Inc. | 4 GHz | Through Hole Right Angle | SMB | 500 V | Solder | Gold | Polytetrafluoroethylene (PTFE) | Nickel | 500 | Silver | Snap-On | 1 | 50 Ohms | Brass | Brass | -65 ░C | 165 °C | Jack Male Pin | Solder |
Radiall USA, Inc. | |||||||||||||||||||
Radiall USA, Inc. | 4 GHz | Through Hole Right Angle | SMB | 335 V | Solder | Gold | Polytetrafluoroethylene (PTFE) | Gold | 500 | Gold | Snap-On | 1 | 50 Ohms | Brass | Brass | -65 ░C | 165 °C | Jack Male Pin | Solder |
Radiall USA, Inc. | 4 GHz | Through Hole Right Angle | SMB | 500 V | Solder | Gold | Polytetrafluoroethylene (PTFE) | Nickel | 500 | Silver | Snap-On | 1 | 50 Ohms | Brass | Brass | -65 ░C | 165 °C | Male Pin Receptacle | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 8.60 | |
Description
General part information
R11466 Series
SMB Connector Jack, Male Pin 50 Ohms Through Hole, Right Angle Solder
