PD-ST1212-S5

Active

Power Dynamics, Inc.

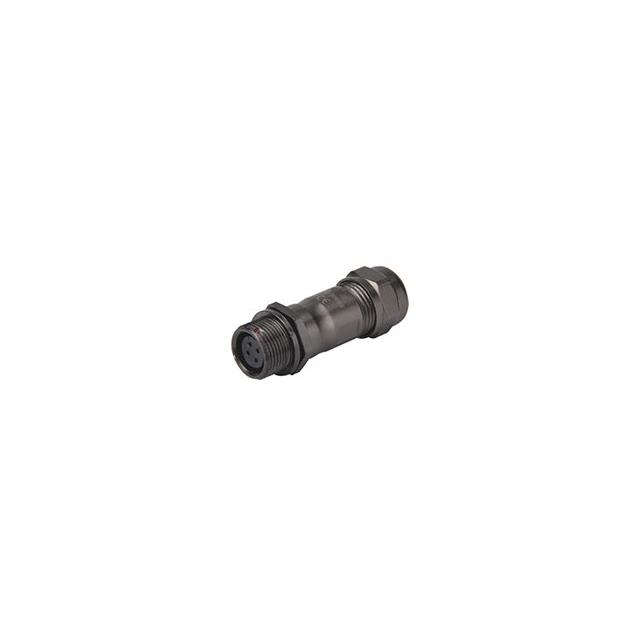

CONN RCPT FMALE 5POS SLDR CUP

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

CONN RCPT FMALE 5POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	PD-ST1212-S5

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black Nickel
Shell Material	Zinc Alloy
Shielding	Unshielded
Voltage Rating	180 VAC

Part	Insert Material	Contact Finish - Mating	Shielding	Shell Finish	Mounting Feature	Current Rating (Amps)	Color	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Orientation	Ingress Protection	Contact Material	Voltage Rating	Primary Material	Material Flammability Rating
Power Dynamics, Inc. PD-ST1212-S5	Polyphenylene Sulfide (PPS)	Gold	Unshielded	Black Nickel	Bulkhead - Front Side Nut	5 A	Black	Zinc Alloy	85 °C	-40 °C	Receptacle Female Sockets	Keyed	IP67 - Dust Tight Waterproof	Brass	180 VAC	Metal	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
