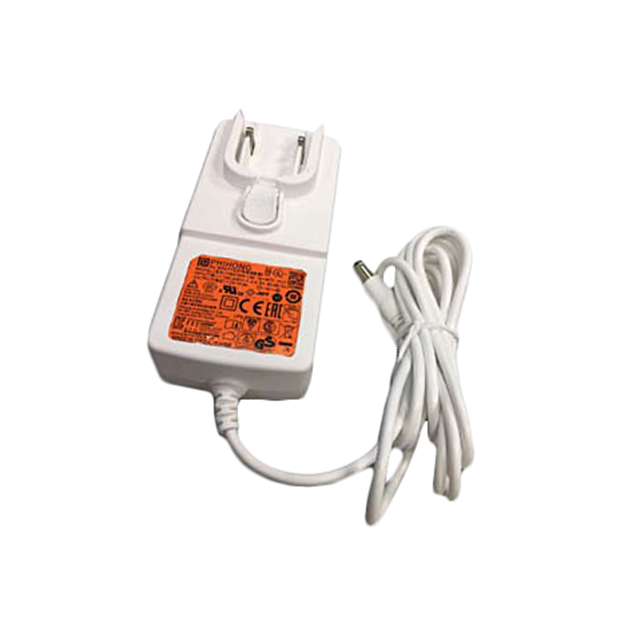

PMA36R-120PHW

Obsolete

Phihong USA

AC/DC WALL MOUNT ADAPTER 12V 36W

Search across all available documentation for this part.

Obsolete

Phihong USA

AC/DC WALL MOUNT ADAPTER 12V 36W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Input Connector	Power (Watts)	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Cord Length	Cord Length	Output Connector [z]	Output Connector [diameter]	Output Connector	Current - Output (Max) [Max]	Region Utilized	Input Type	Voltage - Output	Form	Approval Agency
Phihong USA PMA36R-120PHW	Medical	10 °C	40 °C	Multi-Blade	36 W	Positive Center	90 VAC	264 VAC	Level VI	1.83 m	72 in	10 mm	2.1 mm 5.5 mm	Barrel Plug	3 A	International	Multi-Blade (Sold Separately)	12 V	Wall Mount (Class II)	CE cULus RCM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 28.97

General part information

12V 36 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
