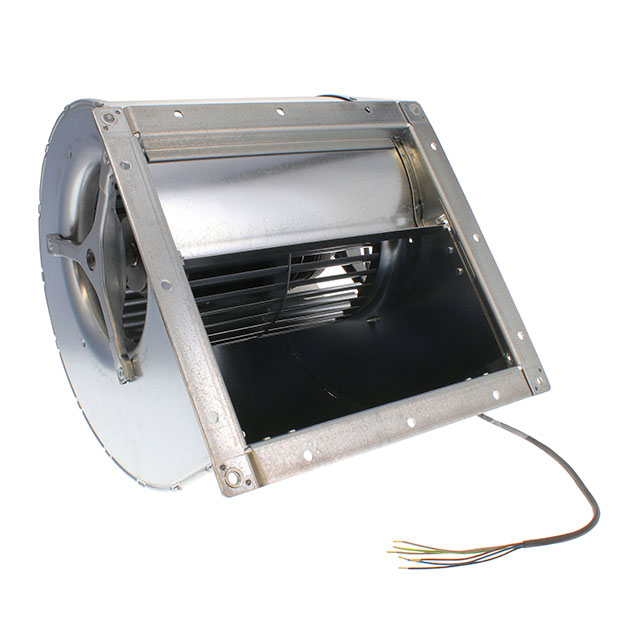

D4E180-CA02-36

Active

ebm-papst Inc.

BLOWER

Search across all available documentation for this part.

Active

ebm-papst Inc.

BLOWER

Technical Specifications

Parameters and characteristics for this part

Specification	D4E180-CA02-36

Approval Agency	CSA, CCC, UL
Bearing Type	Ball
Current Rating (Amps)	2.15 A
Fan Type	Blower, Centrifugal
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Steel
Material - Frame	Steel
Operating Temperature [Max]	35 °C
Operating Temperature [Max]	35 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	495 W
RPM	1300 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	295 mm
Size / Dimension [z]	332 mm
Termination	6 Wire Leads
Voltage - Rated	230 VAC
Width [y]	309 mm

Part	Fan Type	Material - Frame	Material - Blade	Bearing Type	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Width [y]	RPM	Ingress Protection	Current Rating (Amps)	Termination	Approval Agency	Features	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Voltage - Rated
ebm-papst Inc. D4E180-CA02-36	Blower Centrifugal	Steel	Steel	Ball	Rectangular/Rounded	332 mm	295 mm	495 W	309 mm	1300 RPM	IP44	2.15 A	6 Wire Leads	CCC CSA UL	Capacitor Thermal Overload Protector (TOP)	-25 °C	-25 °C	35 °C	35 °C	230 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Centrifugal 230VAC Rectangular/Rounded - 295mm L x 332mm H Ball 6 Wire Leads
