2SD17050P

Obsolete

Panasonic Industrial Automation Sales

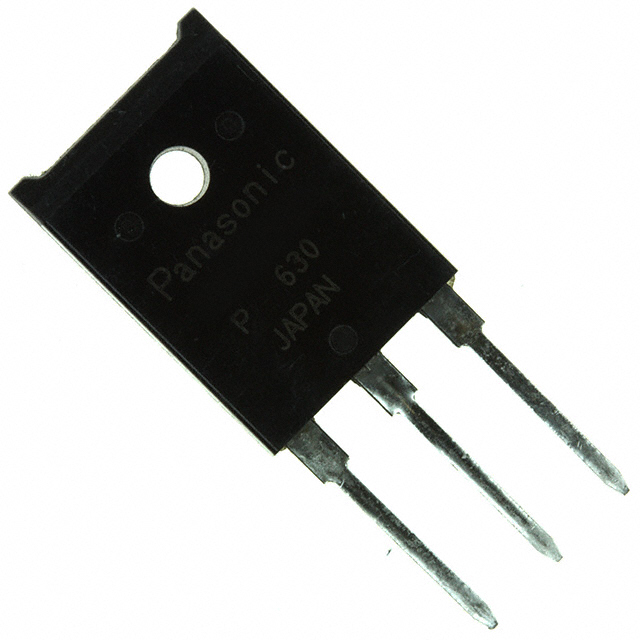

TRANS NPN 80V 10A TOP-3F

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

TRANS NPN 80V 10A TOP-3F

Technical Specifications

Parameters and characteristics for this part

Specification	2SD17050P

Current - Collector Cutoff (Max) [Max]	10 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	130 hFE
Frequency - Transition	20 MHz
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	TOP-3F
Power - Max [Max]	3 W
Supplier Device Package	TOP-3F-A1
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	1.5 V
Voltage - Collector Emitter Breakdown (Max) [Max]	80 V

Part	Mounting Type	Package / Case	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Current - Collector (Ic) (Max)	Power - Max [Max]	Supplier Device Package	Frequency - Transition	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature
Panasonic Industrial Automation Sales 2SD17070P	Through Hole	TOP-3F	NPN	130 hFE	10 µA	1.5 V	20 A	3 W	TOP-3F-A1	20 MHz	80 V	150 °C
Panasonic Industrial Automation Sales 2SD17050P	Through Hole	TOP-3F	NPN	130 hFE	10 µA	1.5 V		3 W	TOP-3F-A1	20 MHz	80 V	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor NPN 80 V 10 A 20MHz 3 W Through Hole TOP-3F-A1
