A007-EW750-Q4

Obsolete

LEDdynamics Inc.

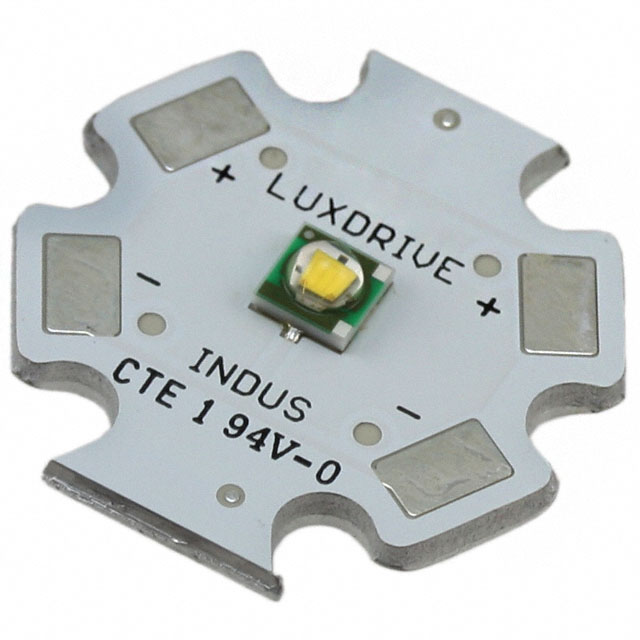

LED MOD INDUS STARBRD 5000K

Search across all available documentation for this part.

Obsolete

LEDdynamics Inc.

LED MOD INDUS STARBRD 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	A007-EW750-Q4

CCT (K)	5000 K
Color	Cool, White
Configuration	Starboard
Current - Max [Max]	700 mA
Current - Test	350 mA
Height [z]	3.75 mm
Lens Type	Domed
Luminous Flux @ Current/Temperature	105 lm
Size / Dimension [x]	19.9 mm
Size / Dimension [y]	19.9 mm
Type	LED Module

Part	Current - Max [Max]	Lens Type	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature	Configuration	Current - Test	Type	CCT (K)	Height [z]	Color
LEDdynamics Inc. A007-EW750-Q4	700 mA	Domed	19.9 mm	19.9 mm	105 lm	Starboard	350 mA	LED Module	5000 K	3.75 mm	Cool White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module Indus Star™ White, Cool Starboard

Technical documentation and resources

No documents available
