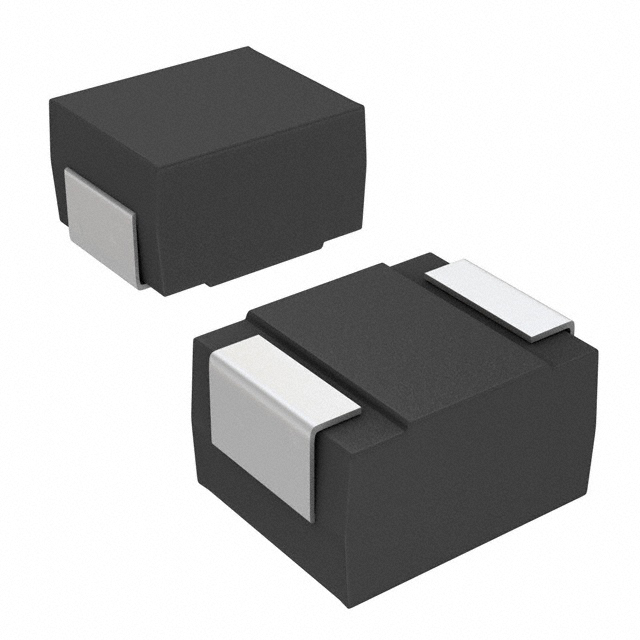

25TQC22MYFB

Active

Panasonic Industrial Automation Sales

CAP, 22UF, 25V, TANT, POLYMER, CASE B2 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

CAP, 22UF, 25V, TANT, POLYMER, CASE B2 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	25TQC22MYFB

Capacitance	22 µF
ESR (Equivalent Series Resistance)	100 mOhm
Features	General Purpose
Height - Seated (Max) [Max] [z]	2 mm
Height - Seated (Max) [Max] [z]	0.079 in
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	B2
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	1210, 1411 (3528 Metric)
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	25 VDC

Part	Voltage - Rated	ESR (Equivalent Series Resistance)	Tolerance	Capacitance	Manufacturer Size Code	Operating Temperature [Max]	Operating Temperature [Min]	Features	Package / Case	Package / Case	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 25TQC22MYFT	25 VDC	70 mOhm	20 %	22 µF	D15	105 ░C	-55 °C	General Purpose	7343 Metric	2917	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	Surface Mount	Molded	1.5 mm	0.059 "
Panasonic Industrial Automation Sales 25TQC15MYFB	25 VDC	100 mOhm	20 %	15 µF	B2	105 ░C	-55 °C	General Purpose	3528 Metric		2000 Hrs	2.8 mm		3.5 mm		Surface Mount	Molded		0.079 in	1411	0.11 in	0.138 "	2 mm
Panasonic Industrial Automation Sales 25TQC100MD3	25 VDC	60 mOhm	20 %	100 µF	D3L	105 ░C	-55 °C	General Purpose	7343 Metric	2917	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	Surface Mount	Molded							3 mm	0.118 in
Panasonic Industrial Automation Sales 25TQC22MYFB	25 VDC	100 mOhm	20 %	22 µF	B2	105 ░C	-55 °C	General Purpose			2000 Hrs	2.8 mm		3.5 mm		Surface Mount	Molded		0.079 in	1210 1411 (3528 Metric)	0.11 in	0.138 "	2 mm
Panasonic Industrial Automation Sales 25TQC68MYF	25 VDC	70 mOhm	20 %	68 µF	D3L	105 ░C	-55 °C	General Purpose	7343 Metric	2917	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	Surface Mount	Molded							3 mm	0.118 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CAP, 22UF, 25V, TANT, POLYMER, CASE B2 ROHS COMPLIANT: YES
