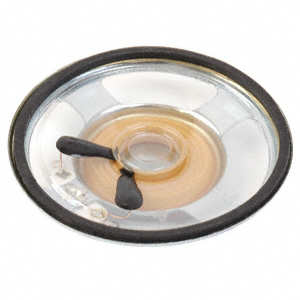

CLS0571M-L152

Active

CUI Devices

SPEAKER 8OHM 200MW TOP PORT 89DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 200MW TOP PORT 89DB

Technical Specifications

Parameters and characteristics for this part

Specification	CLS0571M-L152

Efficiency - dBA	89 dBA
Efficiency - Testing	200mW/500mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	530 Hz
Frequency Range [Max]	20 kHz
Frequency Range [Min]	530 Hz
Height - Seated (Max) [Max] [z]	11.8 mm
Height - Seated (Max) [Max] [z]	0.465 in
Impedance	8 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	500 mW
Power - Rated	200 mW
Shape	Round
Size / Dimension [diameter]	2.244 in
Size / Dimension [diameter]	57 mm
Technology	Magnetic
Termination	Wire Leads
Type	Low Profile

Part	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Efficiency - Type	Material - Magnet	Impedance	Size / Dimension [diameter]	Size / Dimension [diameter]	Efficiency - Testing	Type	Port Location	Termination	Power - Rated	Frequency Range [Max]	Frequency Range [Min]	Material - Cone	Power - Max [Max]	Shape	Technology	Efficiency - dBA
CUI Devices CLS0571M-L152	530 Hz	11.8 mm	0.465 in	Sound Pressure Level (SPL)	Nd-Fe-B	8 Ohms	2.244 in	57 mm	200mW/500mm	Low Profile	Top	Wire Leads	200 mW	20 kHz	530 Hz	Polyester Polyethylene Terephthalate (PET)	500 mW	Round	Magnetic	89 dBA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms Low Profile Speaker 200 mW 530 Hz ~ 20 kHz Top Round
