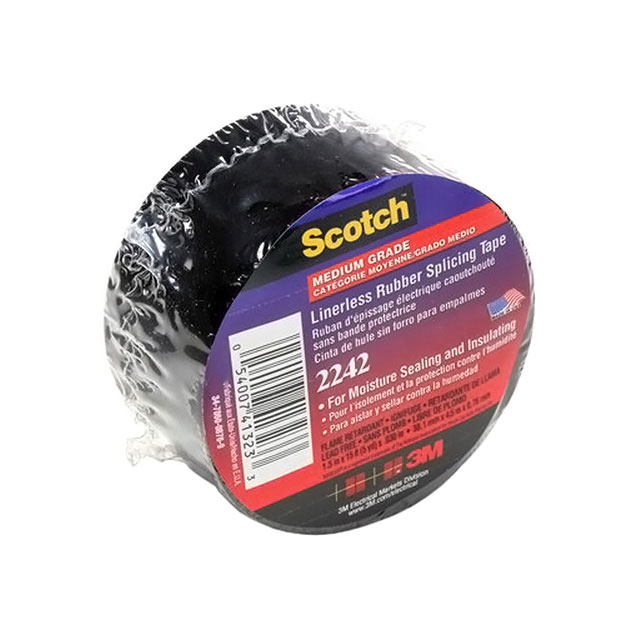

2242-1-1/2X15FT - 2242-1-1/2X15FT

2242-1-1/2X15FT

Active
3M (TC)

TAPE, ELECTRICAL INSULATION, ETHYLENE PROPYLENE RUBBER, BLACK, 15FT L X 1.5" W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDate Code Decipher+2
2242-1-1/2X15FT - 2242-1-1/2X15FT

2242-1-1/2X15FT

Active
3M (TC)

TAPE, ELECTRICAL INSULATION, ETHYLENE PROPYLENE RUBBER, BLACK, 15FT L X 1.5" W

Deep-Dive with AI

DocumentsDatasheetDate Code Decipher+2

Technical Specifications

Parameters and characteristics for this part

Specification2242-1-1/2X15FT
AdhesiveRubber, Self Fusing
Backing, CarrierRubber
ColorBlack
Length4.6 m
Length15 ft
Length5 yd
Shelf Life60 Months
Shelf Life StartDate of Manufacture
Storage/Refrigeration Temperature70 °F
Storage/Refrigeration Temperature21 °C
Tape TypeElectrical
Temperature Range90 °C
Temperature Range194 °F
Thickness0.03 in
Thickness0.762 mm
Thickness0.762 mm
UsageElectrically Insulating
Width1.5 "
Width38.1 mm
Width1 1/2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 28.90
12$ 27.38
36$ 25.86
60$ 24.34
108$ 22.81
252$ 21.29
NewarkEach 1$ 25.45
5$ 24.10
10$ 22.89
20$ 21.84
50$ 21.09

Description

General part information

2242 Series

The 2242 series Scotch™ Liner-less Electrical Rubber Tape with highly conformable EPR (ethylene propylene rubber) based electrical insulation. It is an economical general purpose rubber tape designed for use in splicing and terminating wires and cables rated up to 90°C. The tape will meet industry specifications for flame retardance and has the necessary physical and electrical properties to provide immediate moisture seals and void-free build-up.
