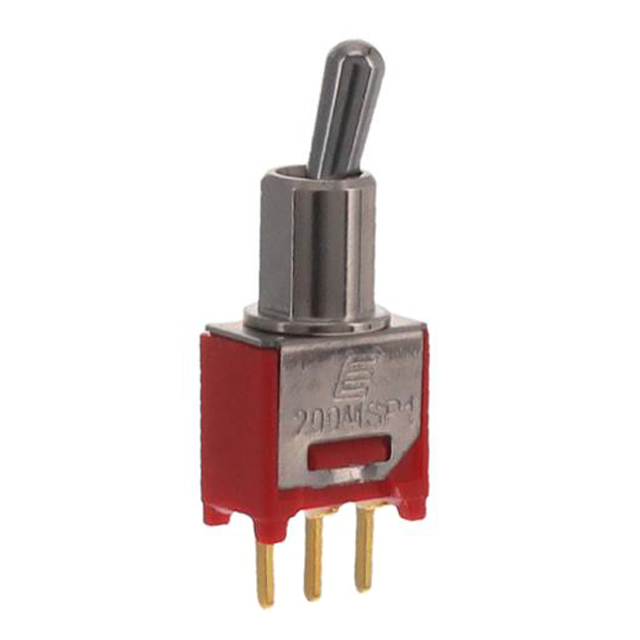

200MSP1T2B2M2RE

Active

E-Switch

20V 20V SPDT STRAIGHT PLUGIN TOGGLE SWITCHES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

200MSP1T2B2M2RE

Active

E-Switch

20V 20V SPDT STRAIGHT PLUGIN TOGGLE SWITCHES ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	200MSP1T2B2M2RE

Actuator Length [x]	5.33 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

200MSP1 Series

Part	Mounting Type	Circuit	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Actuator Type	Electrical Life	Illumination	Termination Style	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Actuator Material	Bushing Thread	Switch Function	Current Rating (Amps)	Voltage Rating - DC
E-Switch 200MSP1T4B1M7QE	Panel Mount Right Angle Vertical	SPDT	4.95 mm	0.5 in	Standard Round	30000 Cycles	Non-Illuminated	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	120 V	Brass Chrome Plated	10-48	On-On	3 A	28 V
E-Switch 200MDP3T1B1M1QEH		DPDT	4.95 mm	9.4 mm	Standard Round	30000 Cycles	Non-Illuminated	Solder Lug	Epoxy Sealed Terminals	-30 ░C	85 °C	120 V	Brass Chrome Plated	10-48	On-Off-On	3 A	28 V
E-Switch 200MSP1T4B2M7RE	Right Angle Through Hole Vertical	SPDT		0.5 in	Standard Round	30000 Cycles	Non-Illuminated	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V	Brass Chrome Plated	Unthreaded	On-On	0.4 VA	20 V
E-Switch 200MSP1T2B4VS2RE	Through Hole	SPDT		5.33 mm	Standard Round	30000 Cycles	Non-Illuminated	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V	Brass Chrome Plated	Unthreaded	On-On	0.4 VA	20 V
E-Switch 200MSP1T5B1M2QE		SPDT	4.95 mm	7.88 mm	Standard Round	30000 Cycles	Non-Illuminated	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	120 V	Brass Chrome Plated	10-48	On-On	3 A	28 V
E-Switch 200MSP1T2B1M1RE		SPDT	4.95 mm	5.33 mm	Standard Round	30000 Cycles	Non-Illuminated	Solder Lug	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V	Brass Chrome Plated	10-48	On-On	0.4 VA	20 V
E-Switch 200MSP1T2B2M2RE	Through Hole	SPDT		5.33 mm	Standard Round	30000 Cycles	Non-Illuminated	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V	Brass Chrome Plated	Unthreaded	On-On	0.4 VA	20 V
E-Switch 200MSP1T2B3M7QE	Panel Mount Right Angle Vertical	SPDT	4.95 mm	5.33 mm	Standard Round	30000 Cycles	Non-Illuminated	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	120 V	Brass Chrome Plated	10-48	On-On	3 A	28 V
E-Switch 200MSP1T2B2M6RE	Through Hole Right Angle	SPDT		5.33 mm	Standard Round	30000 Cycles	Non-Illuminated	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V	Brass Chrome Plated	Unthreaded	On-On	0.4 VA	20 V
E-Switch 200MSP1T2B1M7QE	Panel Mount Right Angle Vertical	SPDT	4.95 mm	5.33 mm	Standard Round	30000 Cycles	Non-Illuminated	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	120 V	Brass Chrome Plated	10-48	On-On	3 A	28 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	315	$ 2.31
LCSC	Piece	1	$ 3.96
		315	$ 1.58
		630	$ 1.53

Description

General part information

200MSP1 Series

Toggle Switch SPDT Through Hole

Documents

Technical documentation and resources

No documents available
