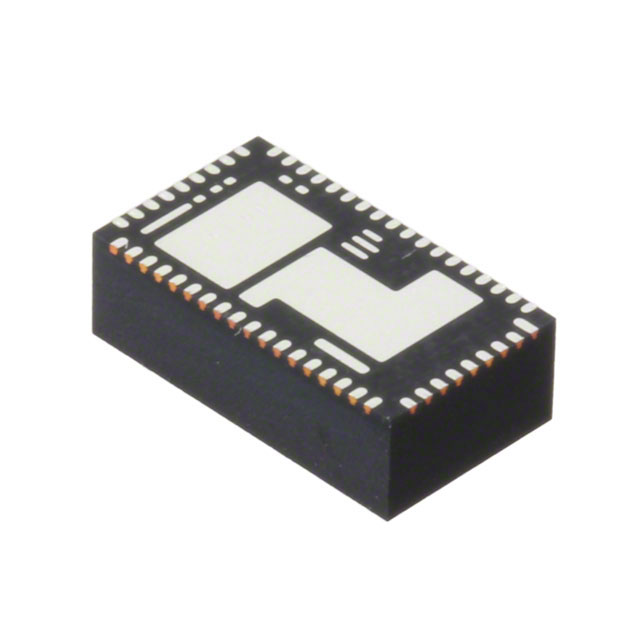

EV1340QI
ObsoleteAltera
DC DC CONVERTER 0.5-0.9V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EV1340QI |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | 91 % |
| Features | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 54-PowerBFQFN Module |
| Size / Dimension [x] | 0.39 " |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [y] | 0.22 " |
| Size / Dimension [y] | 5.5 mm |
| Size / Dimension [z] | 0.12 in |
| Size / Dimension [z] | 3 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 1.8 V |
| Voltage - Input (Min) [Min] | 1 V |
| Voltage - Output 1 [Max] | 0.9 V |
| Voltage - Output 1 [Min] | 0.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EV1340 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.5 ~ 0.9V 5A 1V - 1.8V Input
