JR13WP-3S(71)

Obsolete

Hirose Electric USA, Inc.

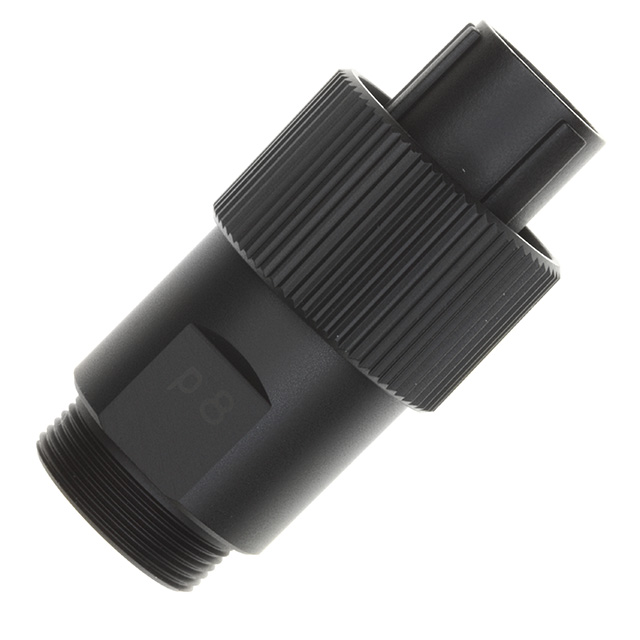

CONN PLUG FMALE 3P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JR13WP-3S(71)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 3P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JR13WP-3S(71)

Applications	Telecommunications, Industrial, Automotive
Backshell Material, Plating	Black Chrome, Brass
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Phenol Formaldehyde (PF)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black Chromium
Shell Material	Aluminum Alloy
Shell Size - Insert	13
Voltage Rating	100 VAC, 140 VDC

JR13WP Series

Part	Connector Type	Backshell Material, Plating	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Features	Color	Shell Material	Shell Finish	Orientation	Contact Finish - Mating	Insert Material	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Mounting Type	Contact Material	Material Flammability Rating	Primary Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Shielding
Hirose Electric USA, Inc. JR13WP-3P(71)	Male Pins Plug	Black Chrome Brass	100 VAC 140 VDC	118.1 µin	3 µm	Automotive Industrial Telecommunications	Backshell Coupling Nut	Black	Aluminum Alloy	Black Chromium	Keyed	Silver	Phenol Formaldehyde (PF)	13	-25 °C	85 °C	IP67/IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Copper Alloy	UL94 V-0	Metal	10 A
Hirose Electric USA, Inc. JR13WP-5P(71)	Male Pins Plug	Black Chrome Brass	100 VAC 140 VDC	118.1 µin	3 µm	Automotive Industrial Telecommunications	Backshell Coupling Nut	Black	Aluminum Alloy	Black Chromium	Keyed	Silver	Phenol Formaldehyde (PF)	13	-25 °C	85 °C	IP67/IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Copper Alloy	UL94 V-0	Metal	5 A
Hirose Electric USA, Inc. JR13WP-3S(71)	Female Sockets Plug	Black Chrome Brass	100 VAC 140 VDC	2 µm		Automotive Industrial Telecommunications	Backshell Coupling Nut	Black	Aluminum Alloy	Black Chromium	Keyed	Silver	Phenol Formaldehyde (PF)	13	-25 °C	85 °C	IP67/IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Copper Alloy	UL94 V-0	Metal	10 A	78.7 µin
Hirose Electric USA, Inc. JR13WP-3P(31)	Male Pins Plug	Black Chrome Brass	100 VAC 140 VDC	118.1 µin	3 µm	Automotive Industrial Telecommunications	Backshell Coupling Nut	Black	Aluminum Alloy	Black Chromium	Keyed	Silver	Phenol Formaldehyde (PF)	13	-25 °C	85 °C	IP67/IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Copper Alloy	UL94 V-0	Metal	10 A		Unshielded
Hirose Electric USA, Inc. JR13WP-3P
Hirose Electric USA, Inc. JR13WP-5S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

JR13WP Series

3 Position Circular Connector Plug, Female Sockets Solder Cup
