012528CD062

Active

Essentra Access Solutions

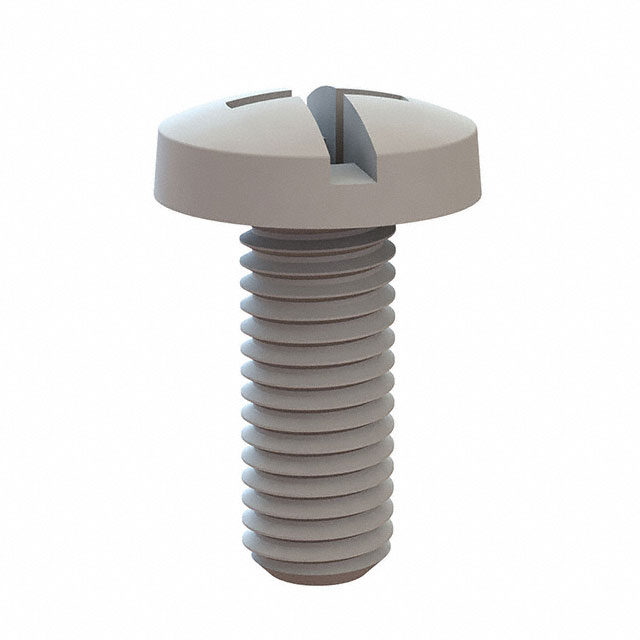

MACH SCRW PAN COMBO 1/4"-28

Search across all available documentation for this part.

Active

Essentra Access Solutions

MACH SCRW PAN COMBO 1/4"-28

Technical Specifications

Parameters and characteristics for this part

Part	Material	Head Height	Head Height	Head Diameter [diameter]	Head Diameter [diameter]	Length - Below Head	Length - Below Head	Length - Below Head	Drive Type	Length - Overall [x]	Length - Overall [x]	Screw Head Type	Thread Size	Type	Length - Overall	Length - Overall
Essentra Access Solutions 012528CD075	Nylon	0.317 in	8.05 mm	12.99 mm	0.511 in	0.75 "	19.05 mm	0.75 "	Combination	27.1 mm	1.067 in	Pan Head	1/4"-28	Machine Screw
Essentra Access Solutions 012528CD100	Nylon	0.317 in	8.05 mm	12.99 mm	0.511 in		25.4 mm	1 in	Combination	33.45 mm	1.317 in	Pan Head	1/4"-28	Machine Screw
Essentra Access Solutions 012528CD062	Nylon	0.317 in	8.05 mm	12.99 mm	0.511 in	0.625 in	15.88 mm	0.625 in	Combination			Pan Head	1/4"-28	Machine Screw	0.942 in	23.93 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.08

General part information

1/4"-28 Pan Head Machine Screw Combination Drive Nylon

Technical documentation and resources

No documents available
