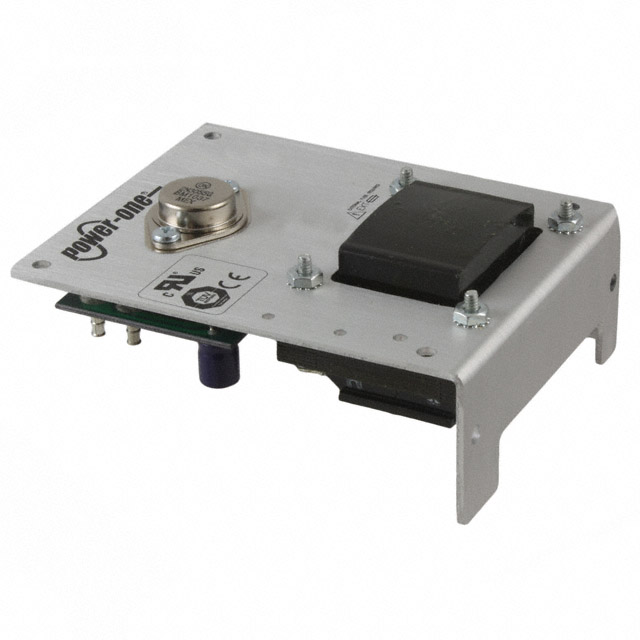

HAD12-0.4-AG
ActiveEOS Power India Private Ltd
AC/DC CONVERTER +/-12V 10W
Deep-Dive with AI
Search across all available documentation for this part.
HAD12-0.4-AG
ActiveEOS Power India Private Ltd
AC/DC CONVERTER +/-12V 10W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HAD12-0.4-AG |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 400 mA |
| Current - Output 2 | 400 mA |
| Efficiency | 55 % |
| Features | Remote Sense, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 4.87 " |
| Size / Dimension [x] | 123.7 mm |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [y] | 4 " |
| Size / Dimension [z] | 53.3 mm |
| Size / Dimension [z] | 2.1 " |
| Type | Linear |
| Voltage - Input | 240 VAC, 120 VAC, 220 VAC, 230 VAC, 100 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 95.19 | |
| 60 | $ 87.31 | |||
Description
General part information
HAD12 Series
Linear AC DC Converters 2 Output 12V -12V 100, 120, 220, 230, 240 VAC Input
Documents
Technical documentation and resources
No documents available
