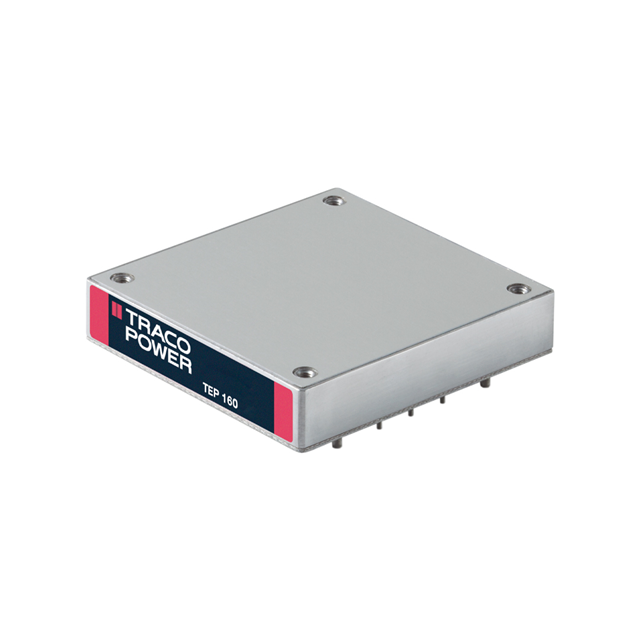

TEP 160-4818

Active

Traco Power

DC DC CONVERTER 48V 192W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TEP 160-4818

Active

Traco Power

DC DC CONVERTER 48V 192W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEP 160-4818

Applications	Railway, ITE (Commercial)
Current - Output (Max) [Max]	4 A
Efficiency	92 %
Features	Remote On/Off, OVP, SCP, OTP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Package / Case	9-DIP Module
Power (Watts)	192 W
Size / Dimension [x]	2.4 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	2.28 in
Size / Dimension [y]	57.9 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	33 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	48 V

TEP 160 Series

Part	Applications	Voltage - Input (Max) [Max]	Voltage - Isolation	Number of Outputs	Current - Output (Max) [Max]	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Mounting Type	Type	Voltage - Output 1	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Current - Output (Max)
Traco Power TEP 160-2411WIRCM	ITE (Commercial) Railway	36 V	2250 VDC	1	28 A	90 %	1.33 " 33.8 mm	3.35 " 85.1 mm	2.4 " 61 mm	CB CE cURus	Chassis Mount	Enclosed	5 V	9 V	-40 °C	75 ¯C	140 W
Traco Power TEP 160-2416WIRCMF	ITE (Commercial) Railway	36 V	2250 VDC	1	5 A	90 %	1.33 " 33.8 mm	3.35 " 85.1 mm	2.4 " 61 mm	CB CE cURus	Chassis Mount	Enclosed	28 V	9 V	-40 °C	75 ¯C	140 W
Traco Power TEP 160-4818WIRCMF	ITE (Commercial) Railway	75 V	2250 VDC	1	3.2 A	91 %	1.33 " 33.8 mm	3.35 " 85.1 mm	2.4 " 61 mm	CB CE cURus	Chassis Mount	Enclosed	48 V	18 V	-40 °C	75 ¯C	154 W
Traco Power TEP 160-4816	ITE (Commercial) Railway	75 V	2250 VDC	1		92 %	12.7 mm	61 mm	57.9 mm		Through Hole	Isolated Module	28 V	33 V	-40 °C	75 ░C	196 W	OTP OVP Remote On/Off SCP	2.4 in	0.5 in	2.28 in	9-DIP Module	7 A
Traco Power TEP 160-2410-CMF	ITE (Commercial)	36 V	2250 VDC	1	40 A	88 %	32.3 mm	85.1 mm	61 mm		Chassis Mount	Enclosed	3.3 V	16.5 V	-40 °C	75 ¯C	132 W		3.35 in	1.27 in	2.4 "
Traco Power TEP 160-2411WIRCMF	ITE (Commercial) Railway	36 V	2250 VDC	1	28 A	90 %	1.33 " 33.8 mm	3.35 " 85.1 mm	2.4 " 61 mm	CB CE cURus	Chassis Mount	Enclosed	5 V	9 V	-40 °C	75 ¯C	140 W
Traco Power TEP 160-4811-CMF	ITE (Commercial)	75 V	2250 VDC	1	34 A	91 %	32.3 mm	85.1 mm	61 mm		Chassis Mount	Enclosed	5 V	33 V	-40 °C	75 ¯C	170 W		3.35 in	1.27 in	2.4 "
Traco Power TEP 160-4813-CM	ITE (Commercial)	75 V	2250 VDC	1	13 A	91 %	32.3 mm	85.1 mm	61 mm		Chassis Mount	Enclosed	15 V	33 V	-40 °C	75 ¯C	195 W		3.35 in	1.27 in	2.4 "
Traco Power TEP 160-4818	ITE (Commercial) Railway	75 V	2250 VDC	1	4 A	92 %	12.7 mm	61 mm	57.9 mm		Through Hole	Isolated Module	48 V	33 V	-40 °C	75 ░C	192 W	OTP OVP Remote On/Off SCP	2.4 in	0.5 in	2.28 in	9-DIP Module
Traco Power TEP 160-2416WIR	ITE (Commercial) Railway	36 V	2250 VDC	1	5 A	90 %	12.7 mm	61 mm	57.9 mm		Through Hole	Isolated Module	28 V	9 V	-40 °C	75 ░C	140 W	OTP OVP Remote On/Off SCP UVLO	2.4 in	0.5 in	2.28 in	9-DIP Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 225.50
		10	$ 167.47

Description

General part information

TEP 160 Series

Isolated Module DC DC Converter 1 Output 48V 4A 33V - 75V Input
