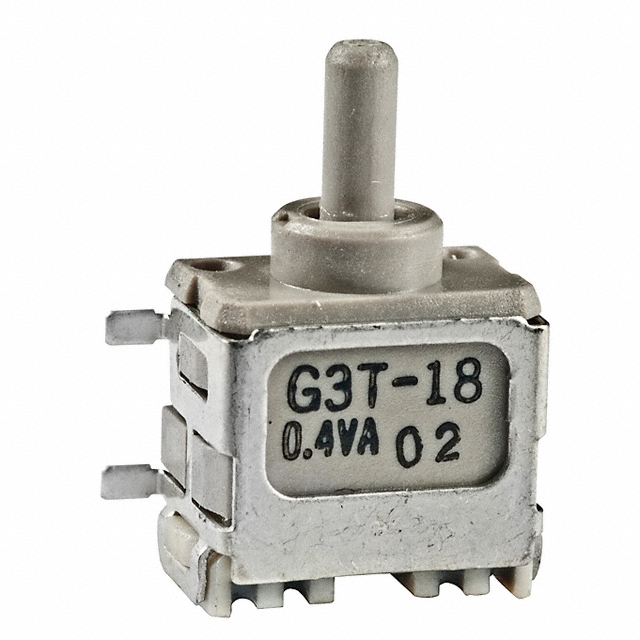

G3T18AH

Active

NKK Switches

PROCESS SEALED ULTRA-MINIATURE SMT TOGGLE

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED ULTRA-MINIATURE SMT TOGGLE

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Length [x]	Actuator Material	Mounting Type	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Features	Actuator Type	Circuit	Bushing Thread	Termination Style	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Electrical Life
NKK Switches G3T18AH	3.81 mm	Polyphenylene Sulfide (PPS)	Surface Mount Right Angle	0.4 VA	28 V	28 V	Process Sealed	Standard Round	SPDT	Unthreaded	Gull Wing	Mom-Off-Mom	-30 ░C	85 °C	Non-Illuminated	50000 Cycles
NKK Switches G3T18AB	3.81 mm	Polyphenylene Sulfide (PPS)	Surface Mount	0.4 VA	28 V	28 V	Process Sealed	Standard Round	SPDT	Unthreaded	Gull Wing	Mom-Off-Mom	-30 ░C	85 °C	Non-Illuminated	50000 Cycles
NKK Switches G3T18AP-S	3.81 mm	Polyphenylene Sulfide (PPS)	Surface Mount	0.4 VA	28 V	28 V	Process Sealed	Standard Round	SPDT	Unthreaded	Gull Wing	Mom-Off-Mom	-30 ░C	85 °C	Non-Illuminated	50000 Cycles
NKK Switches G3T18AP	3.81 mm	Polyphenylene Sulfide (PPS)	Surface Mount	0.4 VA	28 V	28 V	Process Sealed	Standard Round	SPDT	Unthreaded	Gull Wing	Mom-Off-Mom	-30 ░C	85 °C	Non-Illuminated	50000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Surface Mount, Right Angle
