MP2229GQ-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
DC-DC SWITCHING SYNCHRONOUS BUCK REGULATOR, 4.5V-21V IN, 600MV TO 19.95V OUT, 6A, 2MHZ, QFN-14
Deep-Dive with AI
Search across all available documentation for this part.
MP2229GQ-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
DC-DC SWITCHING SYNCHRONOUS BUCK REGULATOR, 4.5V-21V IN, 600MV TO 19.95V OUT, 6A, 2MHZ, QFN-14
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MP2229GQ-P |
|---|---|
| Current - Output | 6 A |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

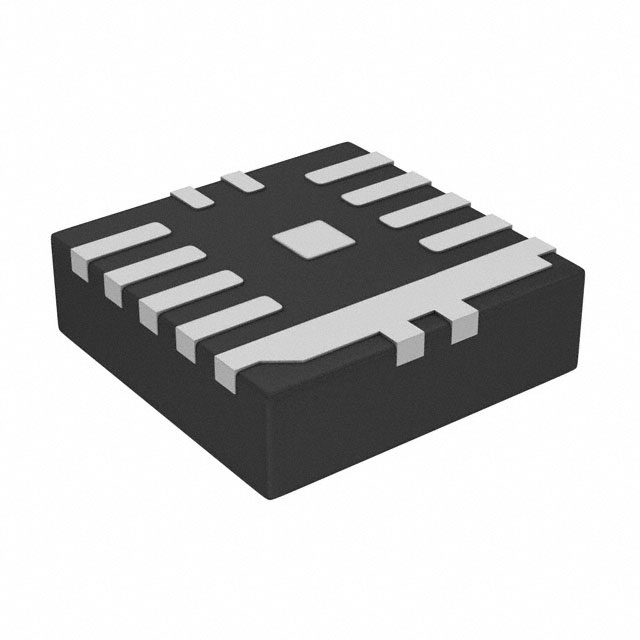

| Package / Case | 14-PowerVFQFN |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 21 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) | 19.95 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MP2229 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 6A 14-PowerVFQFN
