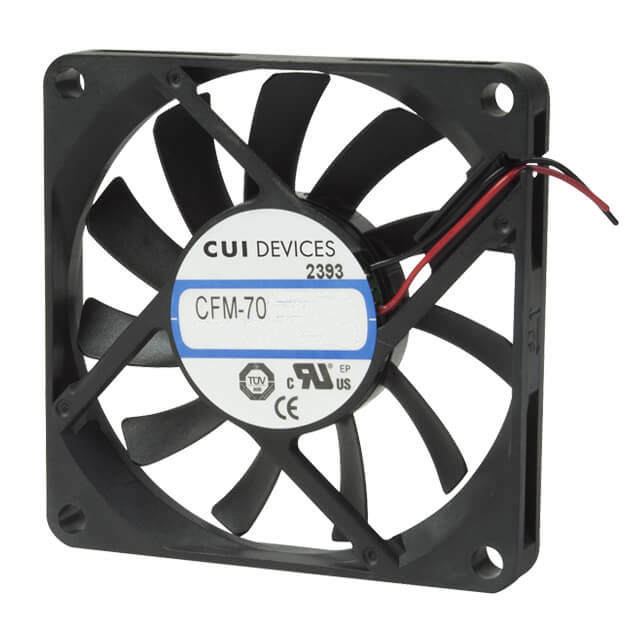

CFM-7010-13-22

Obsolete

CUI Devices

FAN AXIAL 70X10.6MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

CUI Devices

FAN AXIAL 70X10.6MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	CFM-7010-13-22

Air Flow	31.1 CFM
Air Flow	0.871 mł/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.22 A
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	40.6 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	3.24 W
RPM	4400 RPM
Size / Dimension [x]	70 mm
Size / Dimension [y]	70 mm
Static Pressure	40 Pa
Static Pressure	0.16 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Weight	37.65 g
Weight	0.083 lb

Part	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Termination	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Voltage - Rated	Air Flow	Air Flow	Weight	Weight	Current Rating (Amps)	Bearing Type	Noise	Features	Approval Agency	Power (Watts)	Fan Type	Size / Dimension [y]	Size / Dimension [x]
CUI Devices CFM-7010-13-22	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	4400 RPM	4 Wire Leads	Polybutylene Terephthalate (PBT)	13.8 VDC	6 VDC	40 Pa	0.16 in H2O	12 VDC	31.1 CFM	0.871 mł/min	37.65 g	0.083 lb	0.22 A	Ball	40.6 dB(A)	Auto Restart PWM Control Speed Sensor (Tach)	CE cURus TUV	3.24 W	Tubeaxial	70 mm	70 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 12VDC Square - 70mm L x 70mm H Ball 31.1 CFM (0.871m³/min) 4 Wire Leads
