5405-7501-000
ActiveRadiall USA, Inc.
COAX ADAPT BNC TO SMB
Deep-Dive with AI
Search across all available documentation for this part.

5405-7501-000
ActiveRadiall USA, Inc.
COAX ADAPT BNC TO SMB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5405-7501-000 |
|---|---|
| Adapter Type | Plug to Plug |
| Body Finish | Nickel |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | BNC Plug, Male Pin |
| Convert To (Adapter End) | Female Socket, SMB Plug |
| Fastening Type | Snap-On, Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
5405-7501 Series

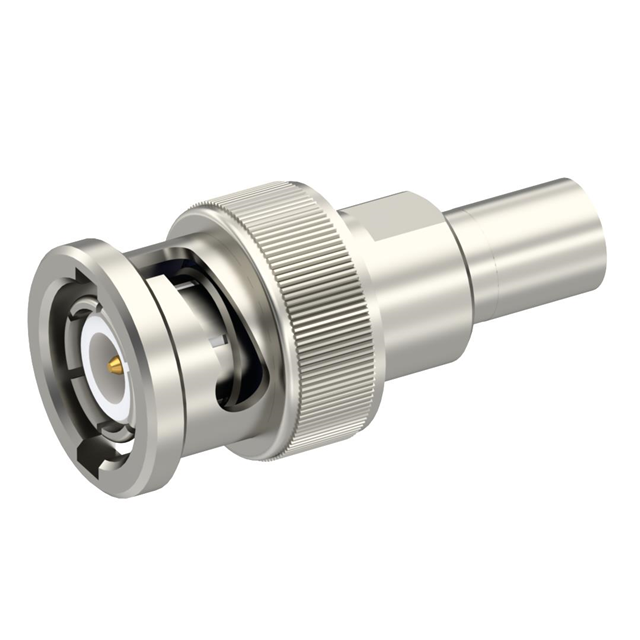

Adapter Coaxial Connector BNC Plug, Male Pin To SMB Plug, Female Socket 50 Ohms
Documents
Technical documentation and resources
No documents available
