Technical Specifications
Parameters and characteristics for this part
| Specification | YB16WCKW01-6G-JB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPDT |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 3 A |
| Electrical Life | 100000 Cycles |
| Features | Tactile Feedback |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 3.6 VDC |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 200000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | On-On |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
YB16WC Series
| Part | Features | Mechanical Life | Voltage Rating - DC | Termination Style | Termination Style | Termination Style | Color - Actuator/Cap | Voltage Rating - AC | Actuator Marking | Circuit | Type | Mounting Type | Ingress Protection | Switch Function | Panel Cutout Dimensions [diameter] | Electrical Life | Current Rating (Amps) | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Tactile Feedback | 200000 Cycles | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | White | 28 V | No Marking | SPDT | Standard | Panel Mount Front | IP65 - Dust Tight Water Resistant | On-On | 16 mm | 100000 Cycles | 0.4 VA | Button Round | 70 °C | -25 °C | ||
NKK Switches | Tactile Feedback | 200000 Cycles | 30 V | 0.11 in | Quick Connect Solder | 2.8 mm | Clear | 125 V | No Marking | SPDT | Illuminated Standard | Panel Mount Front | IP65 - Dust Tight Water Resistant | On-On | 16 mm | 100000 Cycles | 3 A | Button Round | 50 °C | -25 °C | 3.6 VDC | Blue LED |
NKK Switches | Tactile Feedback | 200000 Cycles | 30 V | 0.11 in | Quick Connect Solder | 2.8 mm | Clear (Red Filter/Diffuser) | 125 V | No Marking | SPDT | Illuminated Standard | Panel Mount Front | IP65 - Dust Tight Water Resistant | On-On | 16 mm | 100000 Cycles | 3 A | Button Round | 50 °C | -25 °C | 12 VDC | LED Red |
NKK Switches | Tactile Feedback | 200000 Cycles | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | Clear | 28 V | No Marking | SPDT | Illuminated Standard | Panel Mount Front | IP65 - Dust Tight Water Resistant | On-On | 16 mm | 100000 Cycles | 0.4 VA | Button Round | 50 °C | -25 °C | 12 VDC | Amber LED |
NKK Switches | Tactile Feedback | 200000 Cycles | 30 V | 0.11 in | Quick Connect Solder | 2.8 mm | Clear | 125 V | No Marking | SPDT | Illuminated Standard | Panel Mount Front | IP65 - Dust Tight Water Resistant | On-On | 16 mm | 100000 Cycles | 3 A | Button Round | 50 °C | -25 °C | 12 VDC | Amber LED |
NKK Switches | Tactile Feedback | 200000 Cycles | 30 V | 0.11 in | Quick Connect Solder | 2.8 mm | White | 125 V | No Marking | SPDT | Standard | Panel Mount Front | IP65 - Dust Tight Water Resistant | On-On | 16 mm | 100000 Cycles | 3 A | Button Round | 70 °C | -25 °C | ||
NKK Switches | Tactile Feedback | 200000 Cycles | 30 V | 0.11 in | Quick Connect Solder | 2.8 mm | Blue | 125 V | No Marking | SPDT | Standard | Panel Mount Front | IP65 - Dust Tight Water Resistant | On-On | 16 mm | 100000 Cycles | 3 A | Button Round | 70 °C | -25 °C | ||
NKK Switches | Tactile Feedback | 200000 Cycles | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | Clear | 28 V | No Marking | SPDT | Illuminated Standard | Panel Mount Front | IP65 - Dust Tight Water Resistant | On-On | 16 mm | 100000 Cycles | 0.4 VA | Button Round | 50 °C | -25 °C | 3.3 VDC | Green LED |
NKK Switches | Tactile Feedback | 200000 Cycles | 30 V | 0.11 in | Quick Connect Solder | 2.8 mm | Clear | 125 V | No Marking | SPDT | Illuminated Standard | Panel Mount Front | IP65 - Dust Tight Water Resistant | On-On | 16 mm | 100000 Cycles | 3 A | Button Round | 50 °C | -25 °C | 5 VDC | Green LED |
NKK Switches | Tactile Feedback | 200000 Cycles | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | Yellow (White Filter/Diffuser) | 28 V | No Marking | SPDT | Standard | Panel Mount Front | IP65 - Dust Tight Water Resistant | On-On | 16 mm | 100000 Cycles | 0.4 VA | Button Round | 70 °C | -25 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
YB16WC Series

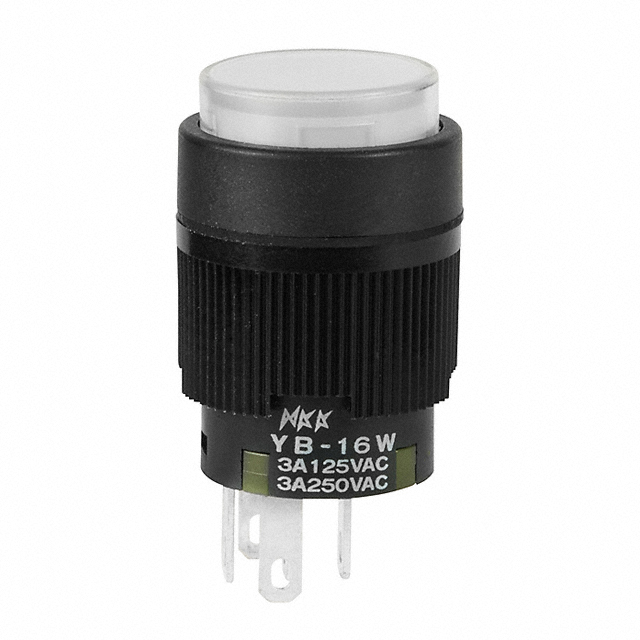

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
