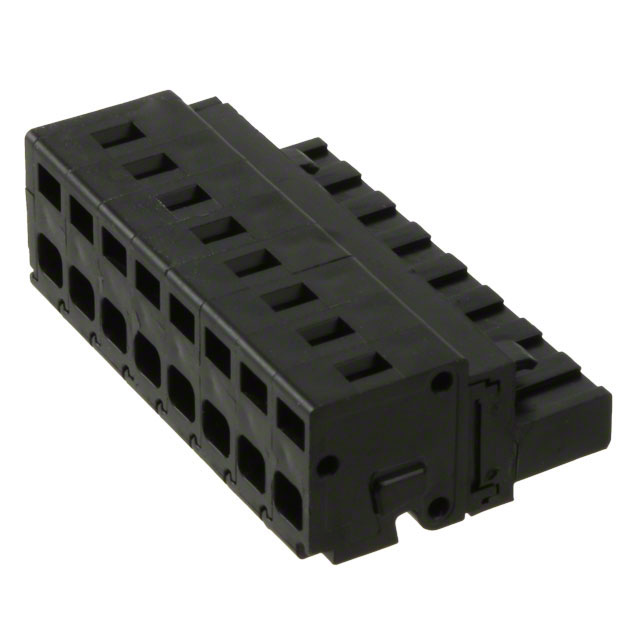

SCFF08210

Active

AMPHENOL PCD

TERM BLOCK PLUG 8POS STR 5.08MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK PLUG 8POS STR 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	SCFF08210

Color	Black
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Housing Material	Polyphenylene Oxide (PPO)
Insulation Height	0.55 in
Insulation Height	13.97 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	8
Operating Temperature	105 C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	8
Termination Style	Screwless - Spring Cage, Tension Clamp
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Strip Length	6.35 mm

Part	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Housing Material	Number of Positions	Material Flammability Rating	Termination Style	Type	Contact Material	Color	Voltage - UL	Number of Levels	Contact Mating Finish	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Positions Per Level	Operating Temperature	Wire Strip Length	Mounting Type
AMPHENOL PCD SCFF08210	0.2 in	5.08 mm	0.55 in	13.97 mm	Polyphenylene Oxide (PPO)	8	UL94 V-0	Screwless - Spring Cage Tension Clamp	Plug Female Sockets	Phosphor Bronze	Black	300 V	1	Tin	28 AWG	12 AWG	8	105 C	6.35 mm	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 4.10

General part information

8 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
